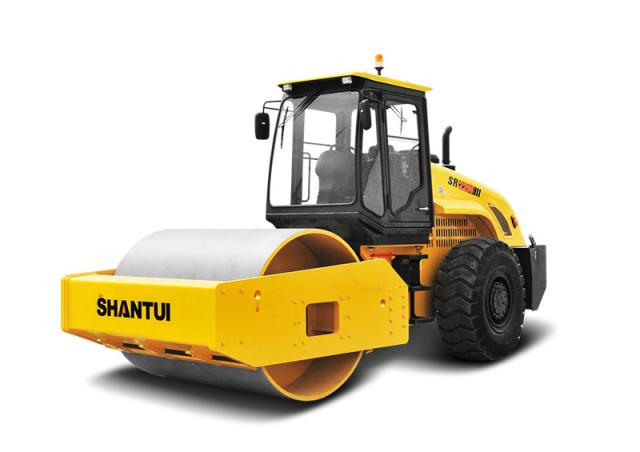

Shantui SR22MA Specifications & Technical Data (2018-2025)

Technical specs - SR22MA Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 22.8 t

Transport length: 6.23 m

Transport width: 2.35 m

Transport height: 3.18 m

Vibration: e

Drive: E

Frequency: 32 Hz

Roller width: 2.14 m

Amplitude: 1.8 mm

Statical line load: 40 kg/cm

Model series: 14-26T

More technical details, like: travel speed, rollers Ø, turning radius outside, turning radius inside, centrifugal force, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: travel speed, rollers Ø, turning radius outside, turning radius inside, centrifugal force, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No

Shantui SR22MA FAQ

When was the Shantui SR22MA manufactured?

The Shantui SR22MA was first produced in 2018.

How much does the Shantui SR22MA weigh?

The Shantui SR22MA weighs 22.8 tons.

What are the transport dimensions of the Shantui SR22MA single-drum roller?

The Shantui SR22MA has a transport length of 6.23 meters, a transport width of 2.35 meters, and a transport height of 3.18 meters.

What type of drive system does the Shantui SR22MA use in its undercarriage?

The Shantui SR22MA uses a simple drive system in its undercarriage.

What are the compaction capabilities of the Shantui SR22MA single-drum roller?

The Shantui SR22MA features a single vibration system with a frequency of 32 Hz, an amplitude of 1.8 mm, and a statical line load of 40 kg/cm.

What is the roller width of the Shantui SR22MA single-drum roller?

The Shantui SR22MA has a roller width of 2.14 meters.

How much is a Shantui SR22MA Single-drum Roller (2018u20132025) worth?

The residual value of the Shantui SR22MA depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
