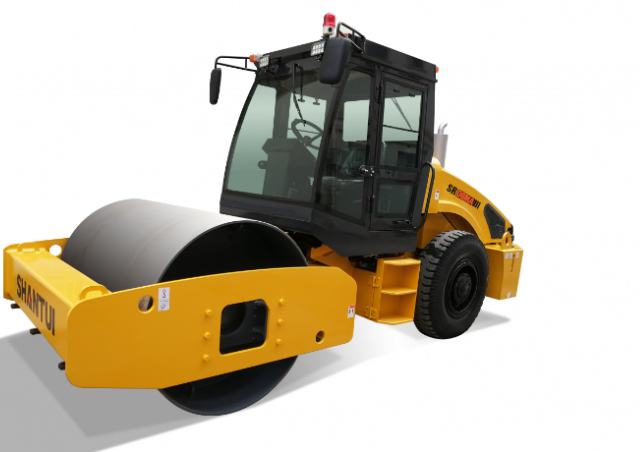

SR08MA Shantui SR08MA Specifications & Technical Data (2023—2026)
Technical specs - SR08MA Shantui
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 8 t
- Transport length
- 5.21 m
- Transport width
- 1.83 m
- Transport height
- 2.57 m
- Travel speed
- 15.5 km/h
- Frequency
- 40 Hz
- Roller width
- 1.65 m
- Rollers Ø
- 1.2 m
- Amplitude
- 0.85 mm
- Turning radius inside
- 5.5 m
- Centrifugal force
- 105 kN
- Engine manuf.
- Xinchai
- Engine type
- A498BG
- Engine power
- 42 kW
- Displacement
- 3.168 l
- Revolutions at max torque
- 1800 rpm
- Max. torque
- 205 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 98x105 mm
- Emission level
- Stage II / China II
More technical details, like: vibration, drive, turning radius outside, statical line load, model series, dimension lxwxh are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
