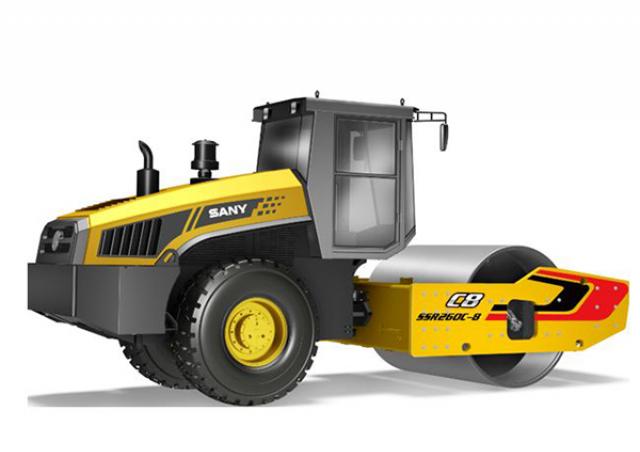

Sany SSR260C-8 Specifications & Technical Data (2020-2026)

Technical specs - SSR260C-8 Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 26 t

Transport length: 7.06 m

Transport width: 2.49 m

Transport height: 3.33 m

Vibration: d

Drive: E

Travel speed: 10 km/h

Frequency: 32 Hz

Roller width: 2.17 m

Rollers Ø: 1.7 m

Amplitude: 2.05 mm

Statical line load: 78.8 kg/cm

Model series: SSR

Engine manuf.: Sany

Engine type: D07S3-245E0

Engine power: 180 kW

Revolutions at max torque: 2200 rpm

Emission level: China III

More technical details, like: turning radius outside, turning radius inside, centrifugal force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No

Download datasheets (PDF)

SSR260C-8 Sany Specification for Europe (EN)

Sany SSR260C-8 FAQ

When was the Sany SSR260C-8 manufactured?

The Sany SSR260C-8 was first produced in 2020.

How much does the Sany SSR260C-8 weigh?

The Sany SSR260C-8 weighs 26 tons.

What are the transport dimensions of the Sany SSR260C-8 single-drum roller?

The Sany SSR260C-8 has a transport length of 7.06 meters, a transport width of 2.49 meters, and a transport height of 3.33 meters.

What is the travel speed of the Sany SSR260C-8 single-drum roller?

The Sany SSR260C-8 has a travel speed of 10 km/h.

What type of drive system does the Sany SSR260C-8 have in its undercarriage?

The Sany SSR260C-8 has a simple drive system in its undercarriage.

What are the compaction capabilities of the Sany SSR260C-8 single-drum roller?

The Sany SSR260C-8 features a double vibration system with a frequency of 32 Hz, an amplitude of 2.05 mm, and a statical line load of 78.8 kg/cm.

What are the roller specifications of the Sany SSR260C-8 single-drum roller?

The Sany SSR260C-8 has a roller width of 2.17 meters and a roller diameter of 1.7 meters.

How much is a Sany SSR260C-8 Single-drum Roller (2020u20132025) worth?

The residual value of the Sany SSR260C-8 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
