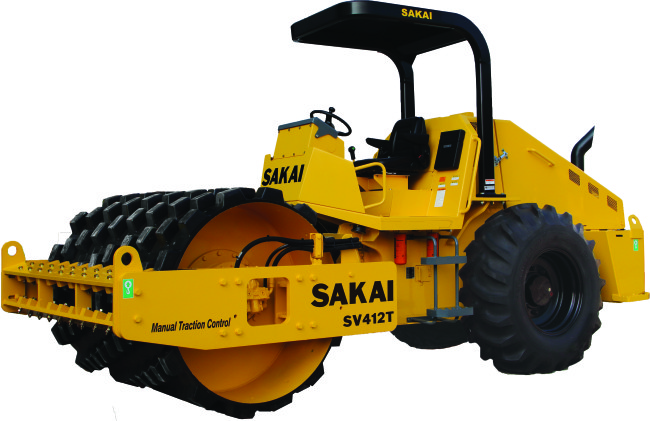

    Sakai SV412T Specifications & Technical Data (2018-2022)

    Rate this machine now!

    Weight: 7.78t – Transport length: 5m – Transport width: 1.92m – Transport height: 2.06m – Travel speed : 6km/h – Frequency: 38Hz

    Technical specs - SV412T Sakai


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 7.78 t
    • Transport length 5 m
    • Transport width 1.92 m
    • Transport height 2.06 m
    • Travel speed 6 km/h
    • Frequency 38 Hz
    • Roller width 1.7 m
    • Rollers Ø 1.35 m
    • Amplitude 1.4 mm
    • Turning radius outside 4.9 m
    • Centrifugal force 127 kN
    • Engine manuf. Cummins
    • Engine type QSB 3,3
    • Engine power 82 kW
    • Displacement 3.3 l
    • No. of cylinders 4
    • Emission level Tier 4

    More technical details, like: vibration, drive, turning radius inside, statical line load, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

    Basic model with ROPS cabin

    Special equipment

    • Diesel particulate filter
    • Sheep foot
    • Oscillation
    • Compression control
    • Aircondition

    Carbon footprint calculator for Single-drum Rollers

    Use the ERA equipment CO2 Calculator to estimate the CO2 footprint per hour of use of the Sakai SV412T or alternative Single-drum Rollers.

    The carbon footprint calculation can be carried out based on different energy consumption scenarios or other variables.

    or go to the ERA Equipment CO2 Calculator to find out how to optimise your CO2 emissions.

    service provided by ERA


    The all-in-one 3D machine control solution for your entire fleet

    Due to the visualisation of the required result, the machine control brings many benefits:

    • Accuracy and fast goal achievements
    • Safety increases – all is managed by the machine operator
    • Lower fuel consumption – environmental friendliness
    • Limiting project delays by significantly reducing the risk of accidental damage to utility or pipe
    • Simpler documentation activities with data exported in CSV format

    Find out more details about how the machine control solution can help you in your daily routine on our website or come visit us at bauma.

    Hexagon teaser
    Ein Service von: Hexagon

    The auction format is a winner in today's market

    When the market for new equipment is tight, the market for used equipment is booming. As the supply is low and the demand high - it is a win/win situation for both buyers and sellers on auction sites.

    Learn more about the benefits of trading via auction and discover all the auctions to place a bid on right now!

    Find out more
    Service provided by: Blinto

    Used Sakai Single-drum Rollers for sale

    We obtain best deals from many sources about Single-drum Rollers.
    Compare current offers on the most popular classified portals presenting second hand Single-drum Rollers to buy in many countries.

    Get in touch for more details:

    Compare Sakai SV412T with similar Single-drum Rollers

    Press 1 image

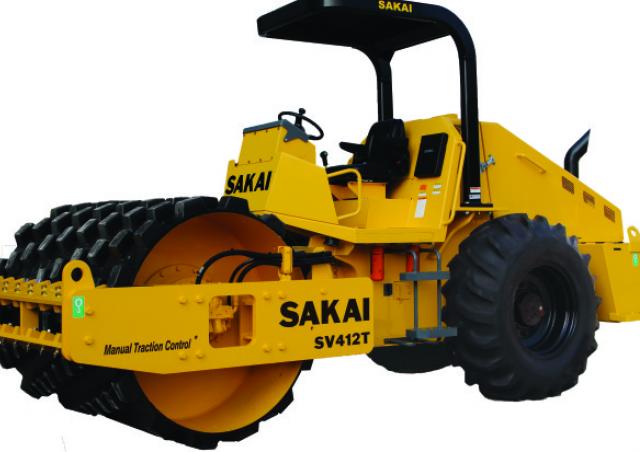

    Sakai SV412T
