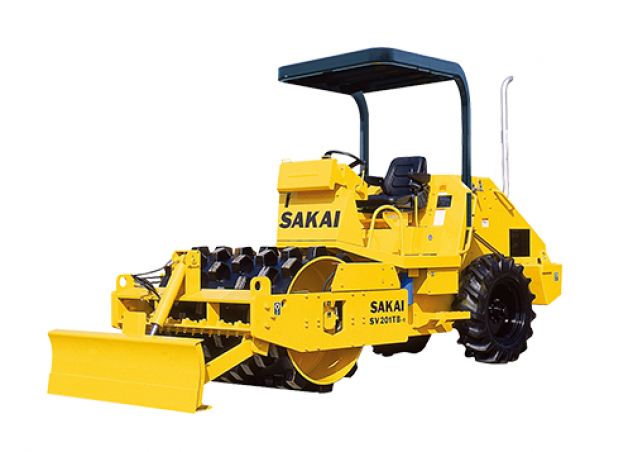

SV201TB-1K Sakai SV201TB-1K Specifications & Technical Data (2018—2026)
Technical specs - SV201TB-1K Sakai
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4.79 t
- Transport length
- 4.77 m
- Transport width
- 1.58 m
- Transport height
- 2.6 m
- Travel speed
- 7.5 km/h
- Frequency
- 30 Hz
- Roller width
- 1.37 m
- Rollers Ø
- 1.05 m
- Amplitude
- 1.52 mm
- Turning radius outside
- 2.6 m
- Centrifugal force
- 72 kN
- Model series
- SV201
- Engine manuf.
- Kubota
- Engine type
- V3307-DI-T
- Engine power
- 54.6 kW
- Displacement
- 3.33 l
- Revolutions at max torque
- 2200 rpm
- No. of cylinders
- 4
More technical details, like: vibration, drive, turning radius inside, statical line load, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Sakai SV201TB-1K FAQ
How much does the Sakai SV201TB-1K weigh?
What are the transport dimensions of the Sakai SV201TB-1K single-drum roller?
What is the travel speed of the Sakai SV201TB-1K single-drum roller?
What is the turning radius of the Sakai SV201TB-1K single-drum roller?
What are the compaction capabilities of the Sakai SV201TB-1K single-drum roller?
What are the roller specifications of the Sakai SV201TB-1K single-drum roller?
