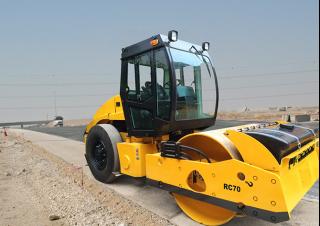

RC70 RHINO RC70 Specifications & Technical Data (2017—2026)
Technical specs - RC70 RHINO
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7 t
- Transport length
- 5.18 m
- Transport width
- 1.92 m
- Transport height
- 2.83 m
- Vibration
- d
- Travel speed
- 15 km/h
- Frequency
- 50 Hz
- Roller width
- 1.7 m
- Rollers Ø
- 1.22 m
- Turning radius outside
- 5 m
- Statical line load
- 21.5 kg/cm
- Model series
- RC
- Engine manuf.
- RHINO
- Engine type
- A498BG
- Engine power
- 42 kW
- Displacement
- 3.2 l
- Revolutions at max torque
- 1800 rpm
- Max. torque
- 195 Nm
- Emission level
- Tier 2
More technical details, like: drive, amplitude, turning radius inside, centrifugal force, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
