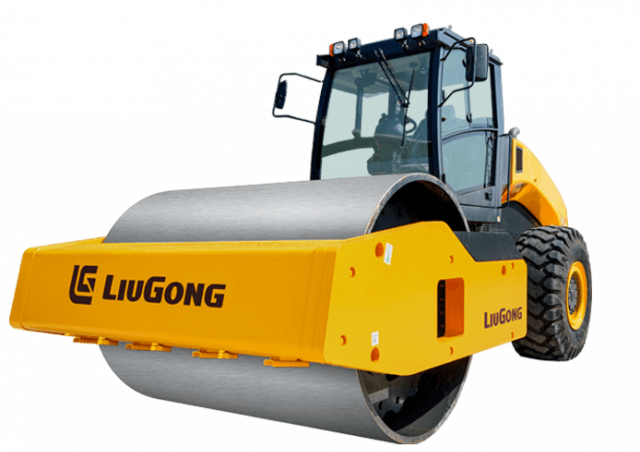

6636E Liugong 6636E Specifications & Technical Data (2022—2026)

Weight: 36t – Transport length: 7.2m – Transport width: 3.3m – Transport height: 2.74m – Travel speed: 10km/h – Frequency: 30Hz

Rollers Single-drum Rollers Liugong 6636E

Visit Liugong live at

Technical specs - 6636E Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36 t
Transport length
7.2 m
Transport width
3.3 m
Transport height
2.74 m
Travel speed
10 km/h
Frequency
30 Hz
Rollers Ø
1.8 m
Amplitude
2.3 mm
Turning radius outside
7 m
Model series
E
Engine manuf.
Weichai
Engine type
WP12G375E350
Engine power
276 kW
Emission level
CN 3

More technical details, like: vibration, drive, roller width, turning radius inside, statical line load, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
Yes
