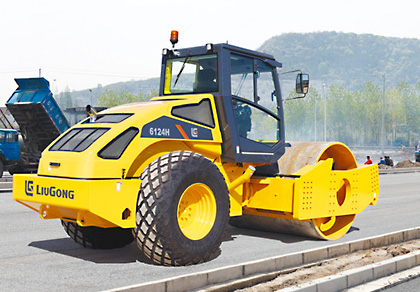

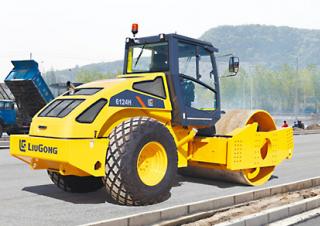

6124H Liugong 6124H Specifications & Technical Data (2013—2025)

Weight: 23.5t – Transport length: 6.36m – Transport width: 2.38m – Transport height: 3.03m – Travel speed: 11km/h – Frequency: 32Hz

Rollers Single-drum Rollers Liugong 6124H

Visit Liugong live at

Technical specs - 6124H Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.5 t
Transport length
6.36 m
Transport width
2.38 m
Transport height
3.03 m
Travel speed
11 km/h
Frequency
32 Hz
Roller width
2.1 m
Rollers Ø
1.7 m
Amplitude
2 mm
Turning radius outside
6.5 m
Turning radius inside
4.4 m
Statical line load
77.1 kg/cm
Model series
H
Engine manuf.
Cummins
Engine type
n/a
Engine power
127 kW
Revolutions at max torque
2200 rpm
Max. torque
685 Nm
No. of cylinders
6
Emission level
Tier 3/EU IIIA

More technical details, like: vibration, drive, centrifugal force, dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
Yes

Download datasheets (PDF)

Liugong 6124H FAQ

When was the Liugong 6124H manufactured?

The Liugong 6124H was first produced in 2013.

How much does the Liugong 6124H weigh?

The Liugong 6124H weighs 23.5 tons.

What are the transport dimensions of the Liugong 6124H single-drum roller?

The Liugong 6124H has a transport length of 6.36 meters, a transport width of 2.38 meters, and a transport height of 3.03 meters.

What is the travel speed of the Liugong 6124H single-drum roller?

The Liugong 6124H has a travel speed of 11 km/h.

What are the outside and inside turning radius values of the Liugong 6124H single-drum roller?

The Liugong 6124H has an outside turning radius of 6.5 meters and an inside turning radius of 4.4 meters.

What are the compaction capabilities of the Liugong 6124H single-drum roller?

The Liugong 6124H operates at a vibration frequency of 32 Hz with an amplitude of 2 mm and has a statical line load of 77.1 kg/cm.

What are the roller specifications of the Liugong 6124H single-drum roller?

The Liugong 6124H has a roller width of 2.1 meters and a roller diameter of 1.7 meters.

How much is a Liugong 6124H Single-drum Roller (2013u20132025) worth?

The residual value of the Liugong 6124H depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
