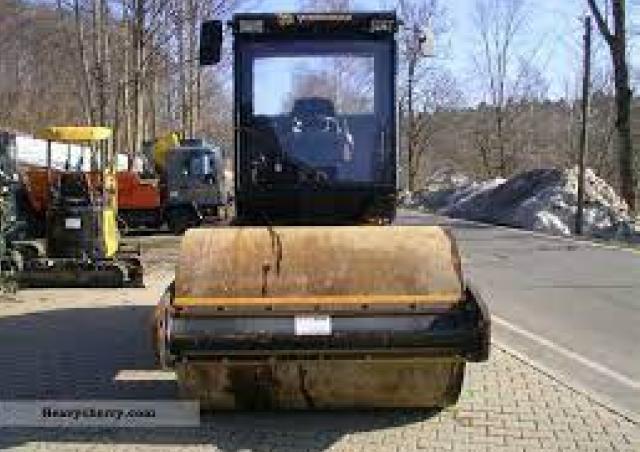

VM 75 D T3 JCB-Vibromax VM 75 D T3 Specifications & Technical Data (2011—2014)
Technical specs - VM 75 D T3 JCB-Vibromax
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.3 t
- Transport length
- 4.887 m
- Transport width
- 1.87 m
- Transport height
- 2.07 m
- Drive
- A
- Travel speed
- 11 km/h
- Frequency
- 29 Hz
- Roller width
- 1.75 m
- Rollers Ø
- 1.22 m
- Amplitude
- 2 mm
- Turning radius outside
- 2.97 m
- Statical line load
- 20.6 kg/cm
- Model series
- VM
- Engine manuf.
- JCB
- Engine type
- 444 TC
- Engine power
- 63 kW
- Displacement
- 4.4 l
- Revolutions at max torque
- 2200 rpm
More technical details, like: vibration, turning radius inside, centrifugal force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
Yes
- Aircondition
-
Yes
Download datasheets (PDF)
JCB-Vibromax VM 75 D T3 FAQ
How much does the JCB-Vibromax VM 75 D T3 weigh?
What are the transport dimensions of the JCB-Vibromax VM 75 D T3 single-drum roller?
What is the travel speed of the JCB-Vibromax VM 75 D T3?
What type of drive system does the JCB-Vibromax VM 75 D T3 have in its undercarriage?
What is the turning radius of the JCB-Vibromax VM 75 D T3?
What are the compaction capabilities of the JCB-Vibromax VM 75 D T3?
What are the roller specifications of the JCB-Vibromax VM 75 D T3?
