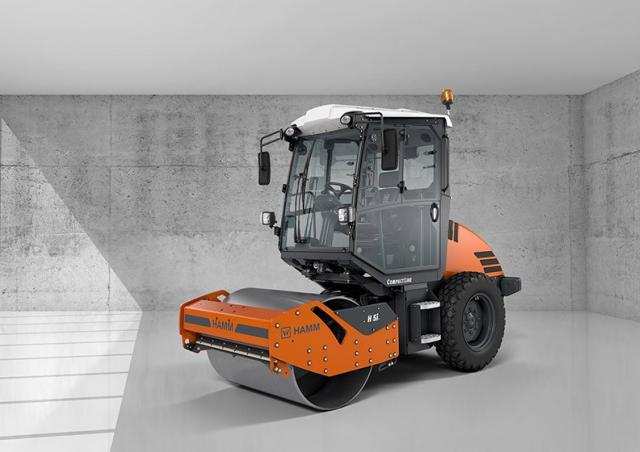

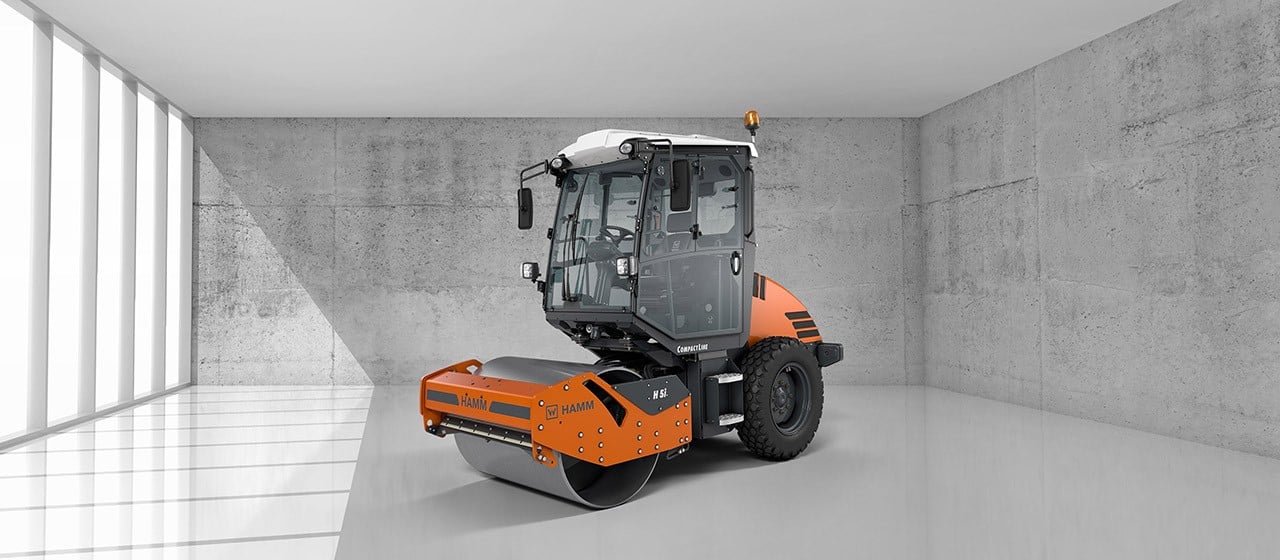

H 5i Hamm H 5i Specifications & Technical Data (2016—2026)
Visit Hamm live at
Technical specs - H 5i Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 5.03 t
- Transport length
- 4.04 m
- Transport width
- 1.5 m
- Transport height
- 2.87 m
- Vibration
- e
- Travel speed
- 12.5 km/h
- Frequency
- 30 Hz
- Roller width
- 1.37 m
- Rollers Ø
- 1 m
- Amplitude
- 1.55 mm
- Turning radius inside
- 3.37 m
- Statical line load
- 19.2 kg/cm
- Centrifugal force
- 69 kN
- Model series
- H
- Engine manuf.
- Kubota
- Engine type
- V3307CR-T
- Engine power
- 55.4 kW
- Revolutions at max torque
- 2200 rpm
- No. of cylinders
- 4
- Emission level
- Stage V
More technical details, like: drive, turning radius outside, dimension lxwxh, displacement, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
