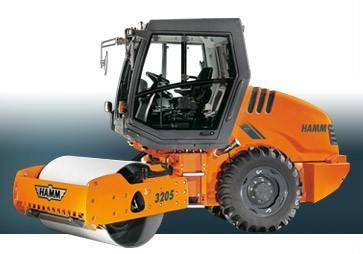

Hamm 3205 Specifications & Technical Data (2008-2015)

Technical specs - 3205 Hamm

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.47 t

Transport length: 4.35 m

Transport width: 2.1 m

Transport height: 2.77 m

Vibration: e

Travel speed: 13.6 km/h

Frequency: 42 Hz

Roller width: 1.37 m

Rollers Ø: 1 m

Amplitude: 1.55 mm

Turning radius outside: 2.96 m

Statical line load: 19.6 kg/cm

Model series: 3000

Engine manuf.: Deutz

Engine type: F4M2011

Engine power: 45 kW

Revolutions at max torque: 2400 rpm

More technical details, like: drive, turning radius inside, centrifugal force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No

Download datasheets (PDF)

Hamm 3205 FAQ

When was the Hamm 3205 manufactured?

The Hamm 3205 was manufactured from 2008 to 2015.

How much does the Hamm 3205 single-drum roller weigh?

The Hamm 3205 single-drum roller weighs 5.47 tons.

What are the transport dimensions of the Hamm 3205 single-drum roller?

The Hamm 3205 has a transport length of 4.35 meters, a transport width of 2.1 meters, and a transport height of 2.77 meters.

What is the travel speed of the Hamm 3205 single-drum roller?

The Hamm 3205 has a travel speed of 13.6 km/h.

What is the turning radius of the Hamm 3205 single-drum roller?

The Hamm 3205 has an outside turning radius of 2.96 meters.

What are the compaction capabilities of the Hamm 3205 single-drum roller?

The Hamm 3205 features a single vibration system with a frequency of 42 Hz, an amplitude of 1.55 mm, and a statical line load of 19.6 kg/cm.

What are the roller specifications of the Hamm 3205 single-drum roller?

The Hamm 3205 has a roller width of 1.37 meters and a roller diameter of 1 meter.

How much is a Hamm 3205 Single-drum Roller (2008u20132015) worth?

The residual value of the Hamm 3205 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
