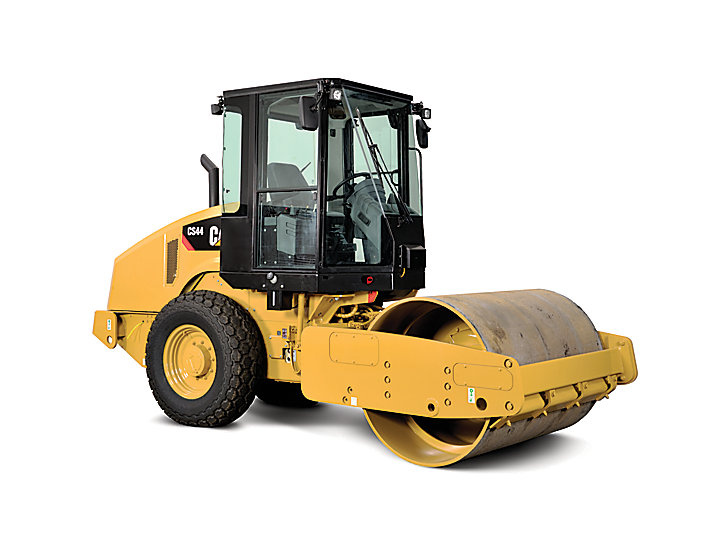

CS44 Caterpillar CS44 Specifications & Technical Data (2010—2015)
.jpg)
.jpg)
Technical specs - CS44 Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.24 t
- Transport length
- 5.1 m
- Transport width
- 1.8 m
- Transport height
- 3 m
- Travel speed
- 12.3 km/h
- Frequency
- 31.9 Hz
- Roller width
- 1.676 m
- Rollers Ø
- 1.221 m
- Amplitude
- 1.67 mm
- Turning radius outside
- 4.75 m
- Statical line load
- 20.3 kg/cm
- Model series
- CS
- Engine manuf.
- Caterpillar
- Engine type
- C4.4 Acert
- Engine power
- 75 kW
- Displacement
- 4.4 l
- Revolutions at max torque
- 2200 rpm
- Cylinder bore x stroke
- 105x127 mm
- Emission level
- Tier 3
More technical details, like: vibration, drive, turning radius inside, centrifugal force, dimension lxwxh, max. torque, no. of cylinders are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
Yes
Download specalog and datasheets (PDF)
