CCS9 Caterpillar CCS9 Specifications & Technical Data (2017—2026)

Weight: 9t – Transport length: 5.71m – Transport width: 2.3m – Transport height: 3.04m – Travel speed: 10.4km/h – Frequency: 42Hz

CCS9

Years of manufacture: 2017—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - CCS9 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9 t

Transport length: 5.71 m

Transport width: 2.3 m

Transport height: 3.04 m

Travel speed: 10.4 km/h

Frequency: 42 Hz

Roller width: 2.13 m

Amplitude: 1.03 mm

Turning radius inside: 3.68 m

Statical line load: 23.5 kg/cm

Engine manuf.: Caterpillar

Engine type: C4.4

Engine power: 98 kW

Displacement: 4.4 l

Cylinder bore x stroke: 127x105 mm

Emission level: Tier 4 Final; EU Stage IV

More technical details, like: vibration, drive, rollers Ø, turning radius outside, centrifugal force, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No

Download specalog and datasheets (PDF)

CCS9 Caterpillar Specification for Europe (EN)

Caterpillar CCS9 FAQ

When was the Caterpillar CCS9 manufactured?

The Caterpillar CCS9 was first produced in 2017.

How much does the Caterpillar CCS9 weigh?

The Caterpillar CCS9 weighs 9 tons.

What are the transport dimensions of the Caterpillar CCS9 single-drum roller?

The Caterpillar CCS9 has a transport length of 5.71 meters, a transport width of 2.3 meters, and a transport height of 3.04 meters.

What is the travel speed of the Caterpillar CCS9 single-drum roller?

The Caterpillar CCS9 has a travel speed of 10.4 km/h.

What is the inside turning radius of the Caterpillar CCS9?

The Caterpillar CCS9 has an inside turning radius of 3.68 meters.

What are the compaction capabilities of the Caterpillar CCS9 single-drum roller?

The Caterpillar CCS9 operates at a frequency of 42 Hz, has an amplitude of 1.03 mm, and a statical line load of 23.5 kg/cm.

What is the roller width of the Caterpillar CCS9 single-drum roller?

The Caterpillar CCS9 has a roller width of 2.13 meters.

How much is a Caterpillar CCS9 Single-drum Roller (2017u20132025) worth?

The residual value of the Caterpillar CCS9 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Caterpillar CCS9 overview

Engine and powertrain

Powertrain Features

Smooth and Quiet Powertrain with C4.4 engine that meets U.S. EPA Tier 4 Final and EU Stage IV emissions standards. Eco-mode, automatic engine speed control, and the auto-vibe features help provide reliable control.

Lifetime Value

Best Lifetime Value with Eco-mode operation that conserves fuel, while oil-bath lubrication and 3 yr/3000 hr vibratory drum service interval extends operation and minimizes life-time operating costs.

Roller

Features

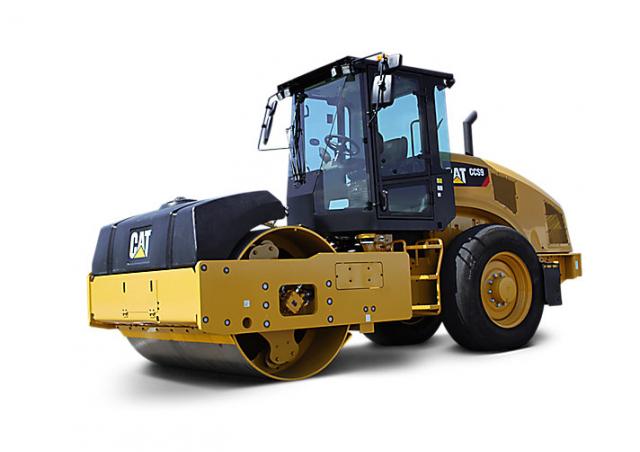

The CCS9 is a 9 metric ton vibratory combination compactor with a 2130 mm (84") drum width. It delivers excellent mat densities and has the ability to press longitudinal joints with its rear wheels. The CCS9 offers good job site visibility, comfort, and fuel efficiency with standard Eco-mode. It's also equipped with the industry-leading water spray system.

Vibratory System

Achieve target densities quickly with the 5-amplitude single frequency vibratory system, which is well equipped to match thick or thin lifts as well as various paving speeds with simple thin/thick lift operation.

Water Spray System

Industry-Leading Water Spray System features a single fill point, dual water pumps, dual spray bars, triple filtration, intermittent operation, and high capacity for optimal performance and longer fill intervals.

Operator's station

Visibility and Control

Exceptional Visibility and Control with smooth steering, touchpad machine functions and LCD display enable comfortable and efficient operation to keep operators engaged.
