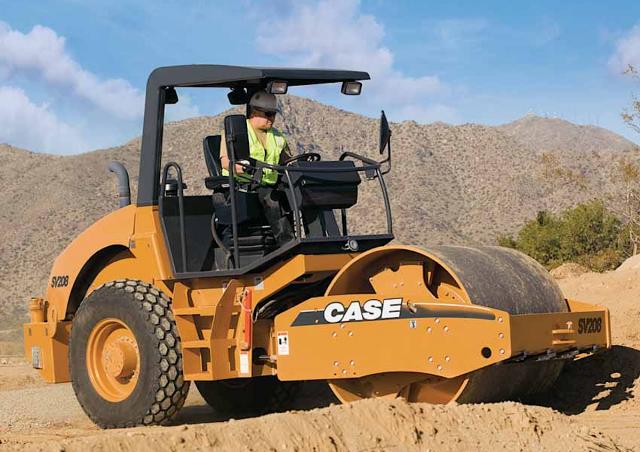

Case SV208 Specifications & Technical Data (2007-2026)

Technical specs - SV208 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.14 t

Transport length: 5.2 m

Transport width: 1.88 m

Transport height: 2.9 m

Frequency: 40 Hz

Roller width: 1.7 m

Turning radius outside: 4.68 m

Turning radius inside: 3.1 m

Statical line load: 23.9 kg/cm

Centrifugal force: 145 kN

Engine manuf.: Cummins

Engine type: QSB3.3-C99

Engine power: 75 kW

More technical details, like: vibration, drive, travel speed, rollers Ø, amplitude, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No

Download datasheets (PDF)

Case SV208 FAQ

When was the Case SV208 manufactured?

The Case SV208 was first produced in 2007.

How much does the Case SV208 weigh?

The Case SV208 weighs 7.14 tons.

What are the transport dimensions of the Case SV208 single-drum roller?

The Case SV208 has a transport length of 5.2 meters, a transport width of 1.88 meters, and a transport height of 2.9 meters.

What are the turning radius specifications of the Case SV208?

The Case SV208 has an outside turning radius of 4.68 meters and an inside turning radius of 3.1 meters.

What are the compaction capabilities of the Case SV208 single-drum roller?

The Case SV208 single-drum roller operates at a frequency of 40 Hz, generates a centrifugal force of 145 kN, and has a statical line load of 23.9 kg/cm.

What is the roller width of the Case SV208 single-drum roller?

The roller width of the Case SV208 is 1.7 meters.
