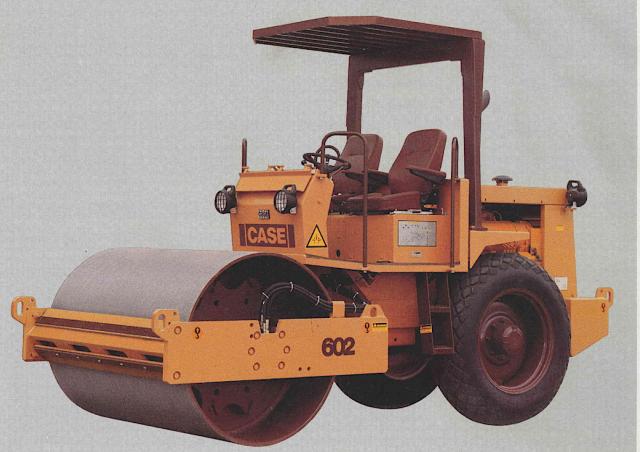

Case 602PD Specifications & Technical Data (1985-2026)

Technical specs - 602PD Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.4 t

Transport length: 4.22 m

Transport width: 1.85 m

Transport height: 2.76 m

Travel speed: 8 km/h

Frequency: 29 Hz

Roller width: 1.75 m

Statical line load: 18.7 kg/cm

Centrifugal force: 152 kN

Model series: PD

More technical details, like: vibration, drive, rollers Ø, amplitude, turning radius outside, turning radius inside, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: vibration, drive, rollers Ø, amplitude, turning radius outside, turning radius inside, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No

Download datasheets (PDF)

602PD Case Specification for Europe (FR)

Case 602PD FAQ

When was the Case 602PD manufactured?

The Case 602PD was first produced in 1985.

How much does the Case 602PD weigh?

The Case 602PD weighs 6.4 tons.

What are the transport dimensions of the Case 602PD single-drum roller?

The Case 602PD has a transport length of 4.22 meters, a transport width of 1.85 meters, and a transport height of 2.76 meters.

What is the travel speed of the Case 602PD single-drum roller?

The Case 602PD has a travel speed of 8 km/h.

What are the compaction capabilities of the Case 602PD single-drum roller?

The Case 602PD operates at a frequency of 29 Hz, generates a centrifugal force of 152 kN, and has a statical line load of 18.7 kg/cm.

What is the roller width of the Case 602PD single-drum roller?

The Case 602PD has a roller width of 1.75 meters.
