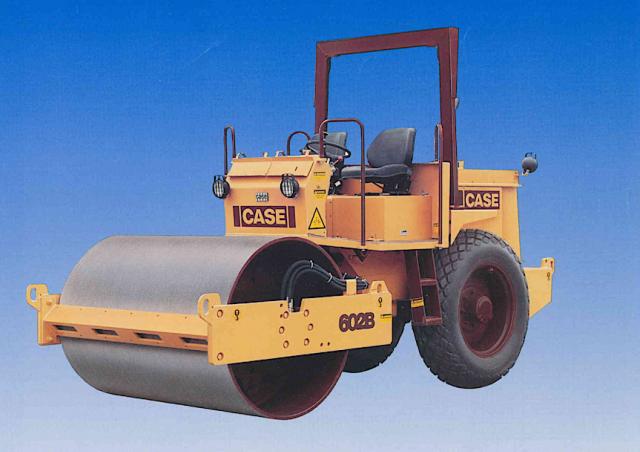

602BPD Case 602BPD Specifications & Technical Data (1990—2026)
Technical specs - 602BPD Case
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 6.6 t
- Transport length
- 4.4 m
- Transport width
- 1.86 m
- Transport height
- 2.81 m
- Travel speed
- 11.6 km/h
- Frequency
- 29 Hz
- Roller width
- 1.75 m
- Statical line load
- 18.7 kg/cm
- Centrifugal force
- 118 kN
- Model series
- BPD
- Engine manuf.
- Case
- Engine type
- 4390
- Engine power
- 58 kW
- Displacement
- 3.91 l
- Max. torque
- 252 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 102x120 mm
More technical details, like: vibration, drive, rollers Ø, amplitude, turning radius outside, turning radius inside, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Case 602BPD FAQ
How much does the Case 602BPD weigh?
What are the transport dimensions of the Case 602BPD single-drum roller?
What is the travel speed of the Case 602BPD single-drum roller?
What are the compaction capabilities of the Case 602BPD single-drum roller?
What is the roller width of the Case 602BPD single-drum roller?
How much is a Case 602BPD Single-drum Roller (1990u20132025) worth?
