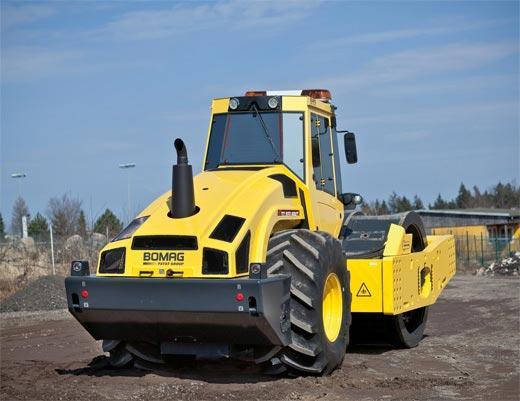

BW 332 DEEP Impact Bomag BW 332 DEEP Impact Specifications & Technical Data (2010—2016)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Bomag live at
Technical specs - BW 332 DEEP Impact Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 32 t
- Transport length
- 6.9 m
- Transport width
- 2.71 m
- Transport height
- 2 m
- Vibration
- e
- Drive
- A
- Travel speed
- 8 km/h
- Frequency
- 26 Hz
- Roller width
- 2.4 m
- Rollers Ø
- 1.745 m
- Amplitude
- 3.3 mm
- Turning radius outside
- 4.295 m
- Statical line load
- 94.2 kg/cm
- Model series
- BW
- Engine manuf.
- Deutz
- Engine type
- TCD2013 L06 2V
- Engine power
- 190 kW
- Revolutions at max torque
- 2300 rpm
More technical details, like: turning radius inside, centrifugal force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
Yes
- Aircondition
-
Yes
Download datasheets (PDF)
Bomag BW 332 DEEP Impact FAQ
How much does the Bomag BW 332 DEEP Impact weigh?
What are the transport dimensions of the Bomag BW 332 DEEP Impact?
What is the travel speed of the Bomag BW 332 DEEP Impact single-drum roller?
What type of drive system does the Bomag BW 332 DEEP Impact have in its undercarriage?
What is the outside turning radius of the Bomag BW 332 DEEP Impact?
What are the compaction capabilities, including the statical line load, of the Bomag BW 332 DEEP Impact single-drum roller?
What are the roller specifications of the Bomag BW 332 DEEP Impact?
