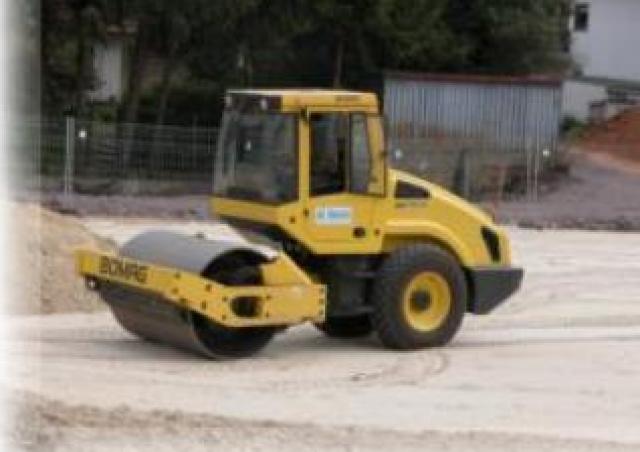

Bomag BW 179 DHC-4 Specifications & Technical Data (2008-2008)

Technical specs - BW 179 DHC-4 Bomag

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9 t

Transport length: 4.91 m

Transport width: 1.84 m

Transport height: 2.86 m

Vibration: e

Drive: A

Travel speed: 14 km/h

Frequency: 40 Hz

Roller width: 1.69 m

Rollers Ø: 1.208 m

Amplitude: 1.9 mm

Statical line load: 24.9 kg/cm

Model series: BW

Engine manuf.: Deutz

Engine type: TCD2011 L04

Engine power: 75 kW

Revolutions at max torque: 2000 rpm

More technical details, like: turning radius outside, turning radius inside, centrifugal force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No

Bomag BW 179 DHC-4 FAQ

When was the Bomag BW 179 DHC-4 manufactured?

The Bomag BW 179 DHC-4 was manufactured in 2008.

How much does the Bomag BW 179 DHC-4 weigh?

The Bomag BW 179 DHC-4 weighs 9 tons.

What are the transport dimensions of the Bomag BW 179 DHC-4?

The Bomag BW 179 DHC-4 has a transport length of 4.91 meters, a transport width of 1.84 meters, and a transport height of 2.86 meters.

What is the travel speed of the Bomag BW 179 DHC-4?

The Bomag BW 179 DHC-4 has a travel speed of 14 km/h.

What type of drive system does the Bomag BW 179 DHC-4 have in its undercarriage?

The Bomag BW 179 DHC-4 has an all-wheel drive system in its undercarriage.

What are the compaction capabilities of the Bomag BW 179 DHC-4 single-drum roller?

The Bomag BW 179 DHC-4 features a single vibration system with a frequency of 40 Hz, an amplitude of 1.9 mm, and a statical line load of 24.9 kg/cm.

What are the roller specifications of the Bomag BW 179 DHC-4?

The Bomag BW 179 DHC-4 has a roller width of 1.69 meters and a roller diameter of 1.208 meters.

How much is a Bomag BW 179 DHC-4 Single-drum Roller (2008u20132008) worth?

The residual value of the Bomag BW 179 DHC-4 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
