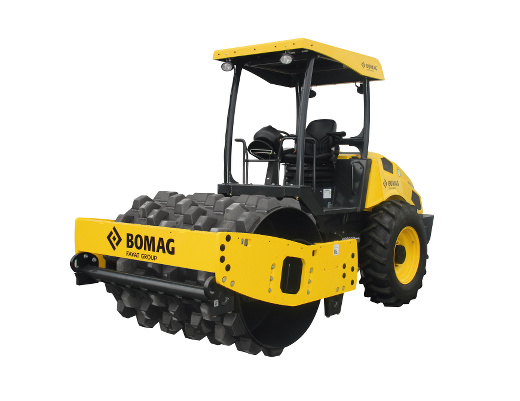

BW 177 PDH-5 Bomag BW 177 PDH-5 Specifications & Technical Data (2016—2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Bomag live at
Technical specs - BW 177 PDH-5 Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 6.9 t
- Transport length
- 4.54 m
- Transport width
- 1.82 m
- Transport height
- 2.8 m
- Vibration
- e
- Drive
- A
- Travel speed
- 10 km/h
- Frequency
- 32 Hz
- Roller width
- 1.69 m
- Rollers Ø
- 1.23 m
- Amplitude
- 1.75 mm
- Turning radius outside
- 2.98 m
- Model series
- BW
- Engine manuf.
- Kubota
- Engine type
- V3307DI-T
- Engine power
- 55.4 kW
- Revolutions at max torque
- 2400 rpm
More technical details, like: turning radius inside, statical line load, centrifugal force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
