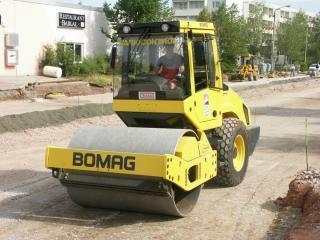

Bomag BW 177 DH-4 BVC Specifications & Technical Data (2004-2008)

Technical specs - BW 177 DH-4 BVC Bomag

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.9 t

Transport length: 4.913 m

Transport width: 1.836 m

Transport height: 2.86 m

Vibration: e

Drive: A

Travel speed: 14 km/h

Frequency: 28 Hz

Roller width: 1.836 m

Rollers Ø: 1.228 m

Amplitude: 2.5 mm

Statical line load: 30.7 kg/cm

Model series: BW

Engine manuf.: Deutz

Engine type: BF4M2012

Engine power: 75 kW

More technical details, like: turning radius outside, turning radius inside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: Yes
Aircondition: No

Bomag BW 177 DH-4 BVC FAQ

When was the Bomag BW 177 DH-4 BVC manufactured?

The Bomag BW 177 DH-4 BVC was manufactured from 2004 to 2008.

How much does the Bomag BW 177 DH-4 BVC weigh?

The Bomag BW 177 DH-4 BVC weighs 7.9 tons.

What are the transport dimensions of the Bomag BW 177 DH-4 BVC?

The Bomag BW 177 DH-4 BVC has a transport length of 4.91 meters, a transport width of 1.84 meters, and a transport height of 2.86 meters.

What is the travel speed of the Bomag BW 177 DH-4 BVC?

The Bomag BW 177 DH-4 BVC has a travel speed of 14 km/h.

What type of drive system does the Bomag BW 177 DH-4 BVC have in its undercarriage?

The Bomag BW 177 DH-4 BVC has an all-wheel drive system in its undercarriage.

What are the compaction capabilities of the Bomag BW 177 DH-4 BVC?

The Bomag BW 177 DH-4 BVC features a single vibration system with a frequency of 28 Hz, an amplitude of 2.5 mm, and a statical line load of 30.7 kg/cm.

What are the roller specifications of the Bomag BW 177 DH-4 BVC single-drum roller?

The Bomag BW 177 DH-4 BVC has a roller width of 1.84 meters and a roller diameter of 1.228 meters.

How much is a Bomag BW 177 DH-4 BVC Single-drum Roller (2004u20132008) worth?

The residual value of the Bomag BW 177 DH-4 BVC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
