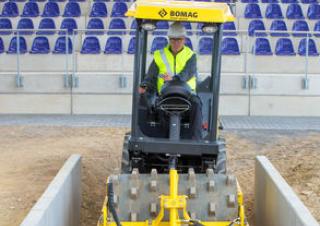

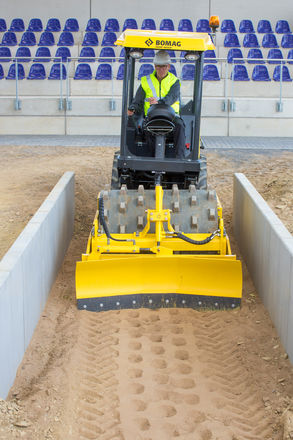

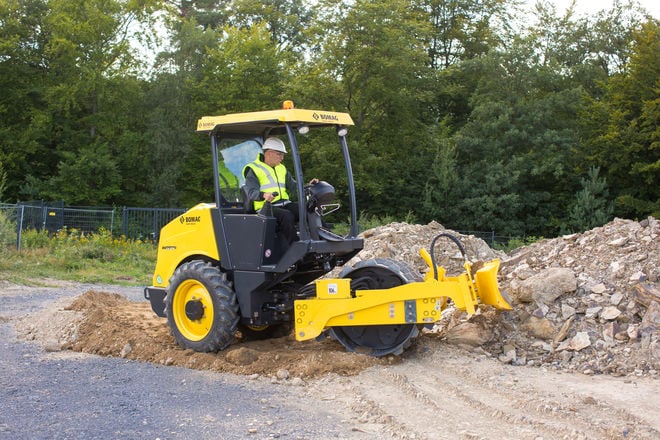

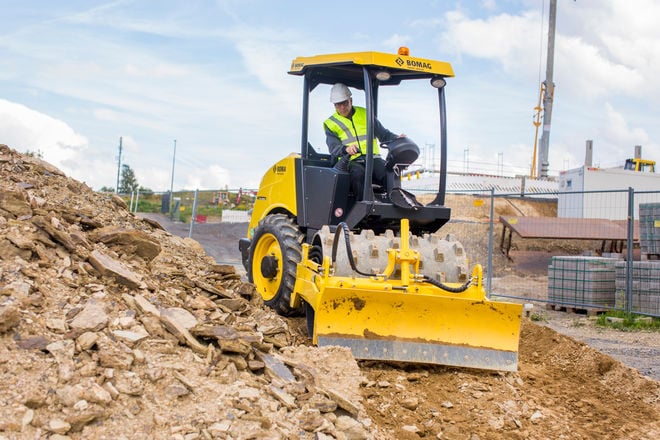

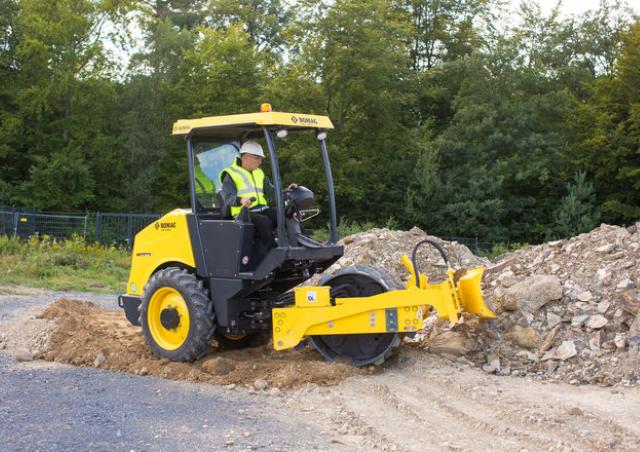

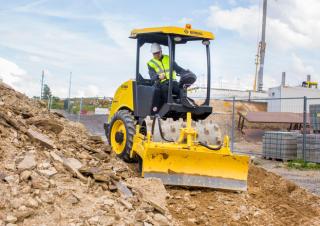

BW 124 PDH-5 Bomag BW 124 PDH-5 Specifications & Technical Data (2017—2026)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Bomag live at
Technical specs - BW 124 PDH-5 Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 3.4 t
- Transport length
- 3.52 m
- Transport width
- 1.31 m
- Transport height
- 2.52 m
- Vibration
- e
- Drive
- A
- Travel speed
- 9 km/h
- Frequency
- 41 Hz
- Roller width
- 1.2 m
- Rollers Ø
- 0.89 m
- Amplitude
- 1.7 mm
- Turning radius outside
- 2.24 m
- Statical line load
- 13.8 kg/cm
- Model series
- BW
- Engine manuf.
- Kubota
- Engine type
- V2403
- Engine power
- 34 kW
- Revolutions at max torque
- 2500 rpm
More technical details, like: turning radius inside, centrifugal force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
Yes
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
