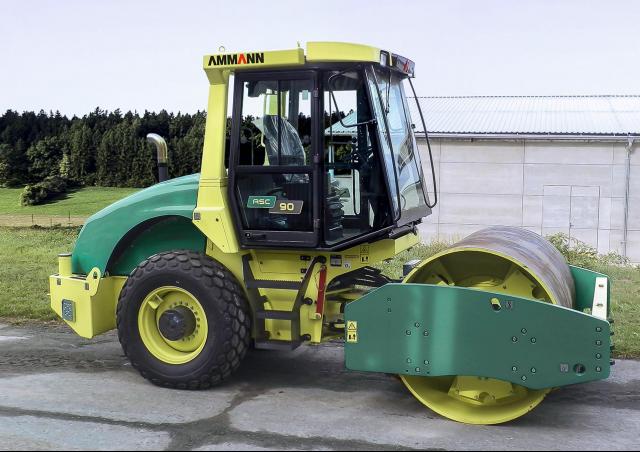

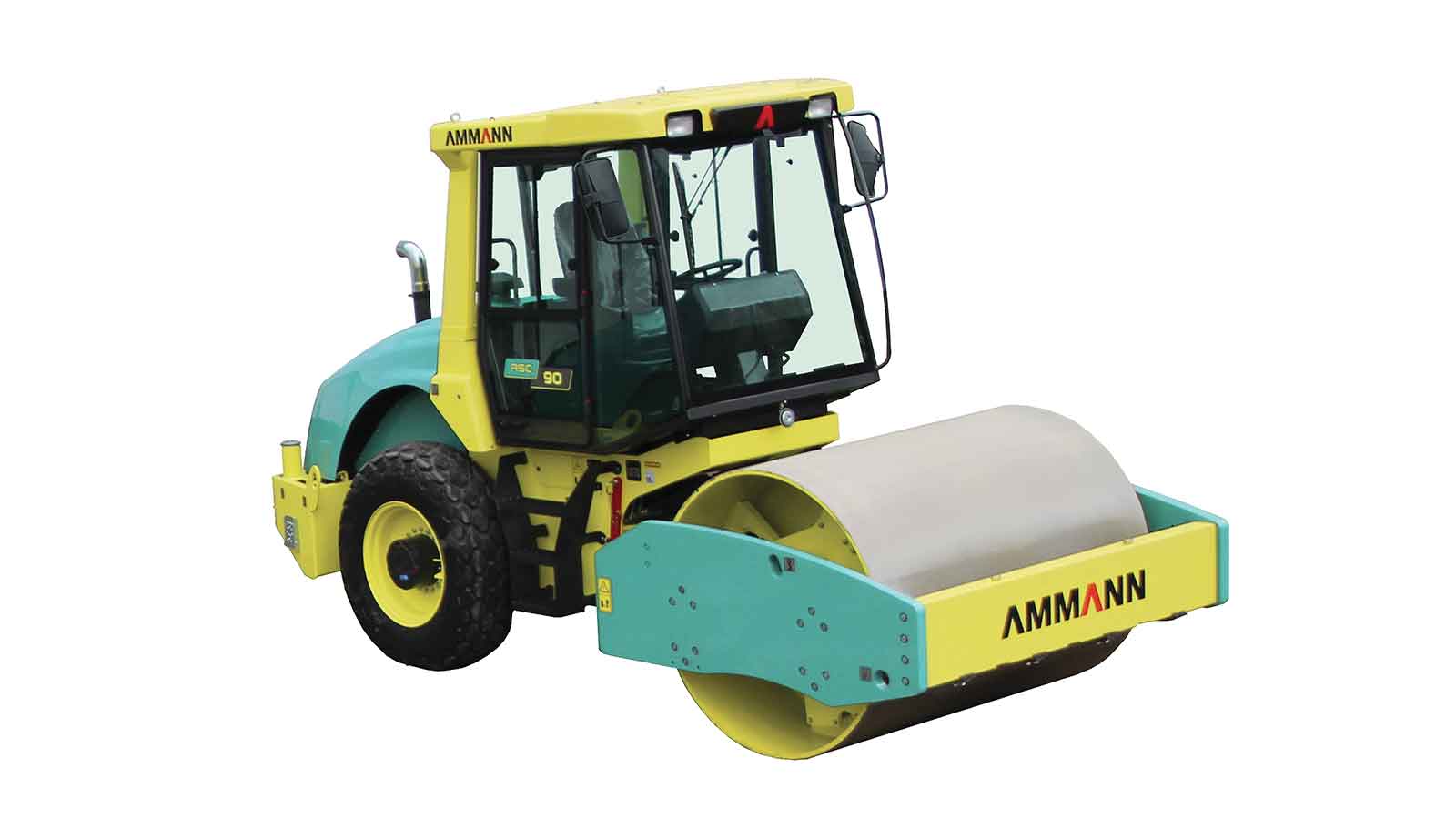

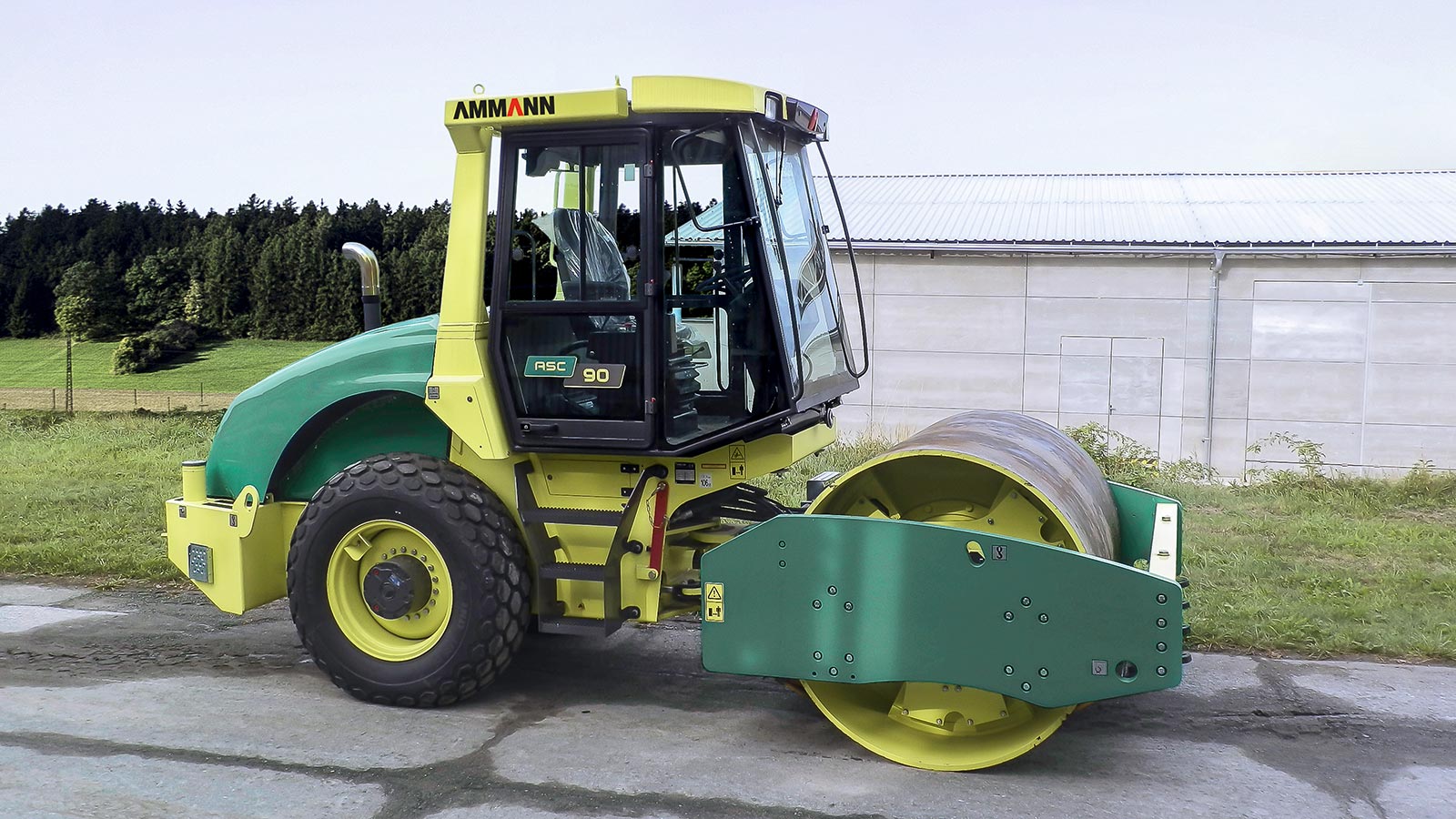

ASC 90 HAT Ammann ASC 90 HAT Specifications & Technical Data (2005—2022)

Weight: 8.9t – Transport length: 5.2m – Transport width: 1.9m – Transport height: 2.9m – Vibration: e – Drive: A

Rollers Single-drum Rollers Ammann ASC 90 HAT

ASC 90 HAT

Years of manufacture: 2005—2022

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - ASC 90 HAT Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.9 t

Transport length: 5.2 m

Transport width: 1.9 m

Transport height: 2.9 m

Vibration: e

Drive: A

Travel speed: 8 km/h

Frequency: 40 Hz

Roller width: 1.68 m

Rollers Ø: 1.3 m

Amplitude: 1.85 mm

Statical line load: 32 kg/cm

Model series: ASC

Engine manuf.: Cummins

Engine type: 4BT3.9-C99

Engine power: 74 kW

Displacement: 3.92 l

Revolutions at max torque: 2200 rpm

More technical details, like: turning radius outside, turning radius inside, centrifugal force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: Yes
Oscillation: No
Compression control: Yes
Aircondition: No

Download datasheets (PDF)

Ammann ASC 90 HAT FAQ

When was the Ammann ASC 90 HAT manufactured?

The Ammann ASC 90 HAT was manufactured from 2005 to 2022.

How much does the Ammann ASC 90 HAT weigh?

The Ammann ASC 90 HAT weighs 8.9 tons.

What are the transport dimensions of the Ammann ASC 90 HAT single-drum roller?

The Ammann ASC 90 HAT has transport dimensions of 5.2 meters in length, 1.9 meters in width, and 2.9 meters in height.

What is the travel speed of the Ammann ASC 90 HAT single-drum roller?

The Ammann ASC 90 HAT has a travel speed of 8 km/h.

What type of drive system does the Ammann ASC 90 HAT have in its undercarriage?

The Ammann ASC 90 HAT has an all-wheel drive system in its undercarriage.

What are the compaction capabilities of the Ammann ASC 90 HAT single-drum roller?

The Ammann ASC 90 HAT features a single vibration system with a frequency of 40 Hz, an amplitude of 1.85 mm, and a statical line load of 32 kg/cm.

What are the roller specifications of the Ammann ASC 90 HAT single-drum roller?

The Ammann ASC 90 HAT has a roller width of 1.68 meters and a roller diameter of 1.3 meters.

How much is a Ammann ASC 90 HAT Single-drum Roller (2005u20132022) worth?

The residual value of the Ammann ASC 90 HAT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
