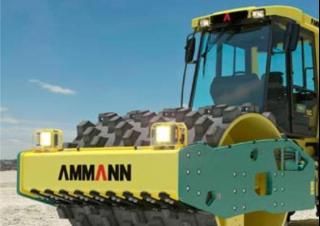

ASC 150 HX Ammann ASC 150 HX Specifications & Technical Data (2017—2019)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - ASC 150 HX Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 15.04 t
- Transport length
- 6.14 m
- Transport width
- 2.26 m
- Transport height
- 3.07 m
- Vibration
- e
- Drive
- A
- Travel speed
- 9.6 km/h
- Frequency
- 35 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.5 m
- Amplitude
- 2 mm
- Turning radius outside
- 6.1 m
- Statical line load
- 49.1 kg/cm
- Model series
- ASC
- Engine manuf.
- Deutz
- Engine type
- TCD4.1 L4
- Engine power
- 115 kW
- Displacement
- 4.1 l
- Revolutions at max torque
- 2200 rpm
- No. of cylinders
- 4
- Emission level
- T4f
More technical details, like: turning radius inside, centrifugal force, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
Yes
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
Yes
- Aircondition
-
No
Download datasheets (PDF)
