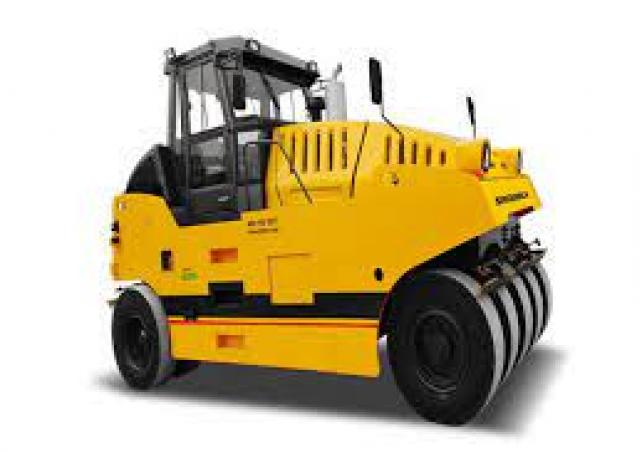

LTP1016 YTO LTP1016 Specifications & Technical Data (2017—2026)
Technical specs - LTP1016 YTO
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 10 t
- Transport length
- 4.77 m
- Transport width
- 2.286 m
- Transport height
- 3.1 m
- max. total weight
- 16 t
- Travel speed
- 16 km/h
- Roller width
- 2.29 m
- Wheels
- 4/5
- Turning radius outside
- 7.5 m
- Model series
- LTP
- Engine manuf.
- Cummins
- Engine type
- 4BT3.9
- Engine power
- 75 kW
- Displacement
- 3.92 l
- Revolutions at max torque
- 2200 rpm
More technical details, like: drive, ballast weight, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Edging press
-
No
- Trailer coupling
-
No
Download datasheets (PDF)
