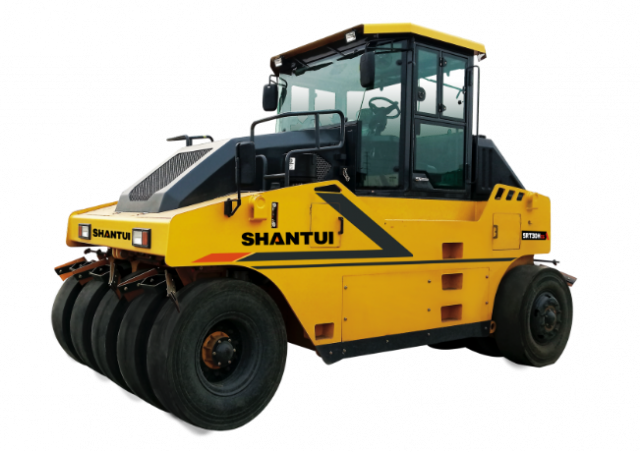

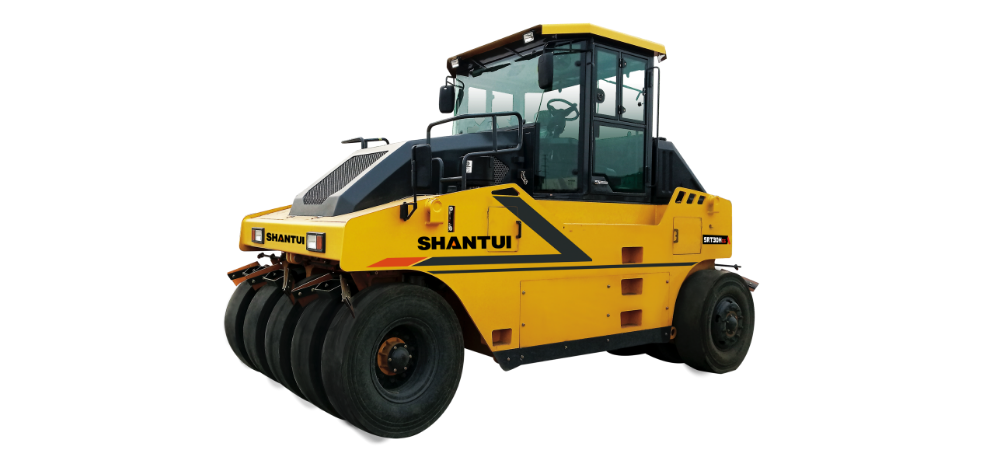

SRT30H-C6 Shantui SRT30H-C6 Specifications & Technical Data (2023—2026)
Technical specs - SRT30H-C6 Shantui
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 12.9 t
- Transport length
- 4.92 m
- Transport width
- 2.92 m
- Transport height
- 3.41 m
- max. total weight
- 30 t
- Travel speed
- 13 km/h
- Roller width
- 2.75 m
- Ballast weight
- 11.35 t
- Turning radius outside
- 8.33 m
- Engine manuf.
- Weichai
- Engine type
- WP4.6NG200E301
- Engine power
- 147 kW
- Displacement
- 4.58 l
- Revolutions at max torque
- 1600 rpm
- Max. torque
- 820 Nm
- No. of cylinders
- 4
- Emission level
- Stage IIIA / China III
More technical details, like: drive, wheels, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Edging press
-
No
- Trailer coupling
-
No
Download datasheets (PDF)
