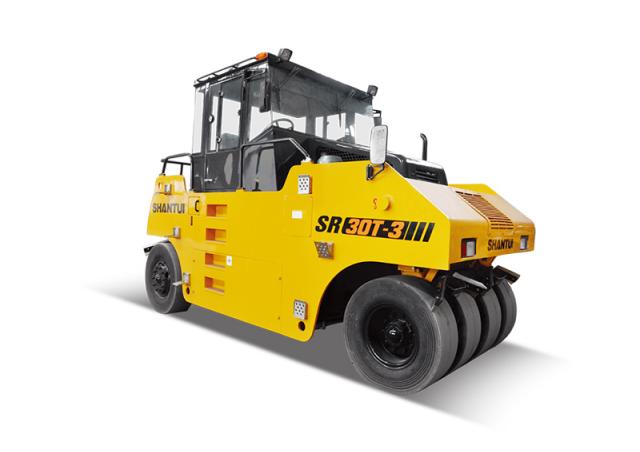

SR30T-3 Shantui SR30T-3 Specifications & Technical Data (2018—2020)

Weight: 16.5t – Transport length: 5.06m – Transport width: 2.592m – Transport height: 3.338m – Drive: A – max. total weight: 30t

Rollers Rubber-wheeled Rollers Shantui SR30T-3

Technical specs - SR30T-3 Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.5 t
Transport length
5.06 m
Transport width
2.592 m
Transport height
3.338 m
Drive
A
max. total weight
30 t
Ballast weight
11.4 t
Wheels
4/5

More technical details, like: travel speed, roller width, turning radius outside, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: travel speed, roller width, turning radius outside, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Infrared heater
No
Edging press
No
Trailer coupling
No

Shantui SR30T-3 FAQ

When was the Shantui SR30T-3 manufactured?

The Shantui SR30T-3 was manufactured from 2018 to 2020.

What is the weight of the Shantui SR30T-3 rubber-wheeled roller?

The Shantui SR30T-3 weighs 16.5 tons and has a maximum total weight of 30 tons.

What are the transport dimensions of the Shantui SR30T-3 rubber-wheeled roller?

The Shantui SR30T-3 has a transport length of 5.06 meters, a transport width of 2.59 meters, and a transport height of 3.34 meters.

What are the undercarriage specifications of the Shantui SR30T-3 rubber-wheeled roller?

The Shantui SR30T-3 features an all-wheel drive system and has 4/5 wheels.

What is the ballast weight of the Shantui SR30T-3 rubber-wheeled roller?

The Shantui SR30T-3 has a ballast weight of 11.4 tons.

How much is a Shantui SR30T-3 Rubber-wheeled Roller (2018u20132020) worth?

The residual value of the Shantui SR30T-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Machine inspection

Ask for inspection of your Shantui SR30T-3 from experts

Machine inspection

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by: Mevas — The Heavy Equipment Inspectors

Buy & Rent

Compare Shantui SR30T-3 with similar Rubber-wheeled Rollers

Shantui SR30T-3

Shantui SR30T-3

Weight:
16.5 t
Transport length:
5.06 m
Transport width:
2.592 m
Transport height:
3.338 m
Caterpillar PS 300 B

Caterpillar PS 300 B

Weight:
14.7 t
Transport length:
5.3 m
Transport width:
2 m
Transport height:
3 m
Volvo PT240R

Volvo PT240R

Weight:
16.1 t
Transport length:
4.75 m
Transport width:
2.02 m
Transport height:
3.3 m
Bitelli RG 248

Bitelli RG 248

Weight:
14.3 t
Transport length:
4.6 m
Transport width:
2.1 m
Transport height:
3.47 m
XCMG XP261

XCMG XP261

Weight:
14.5 t
Transport length:
5.06 m
Transport width:
2.845 m
Transport height:
3.38 m
