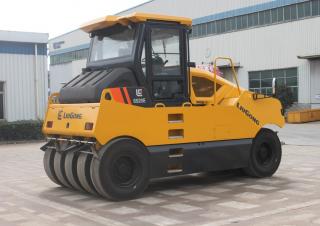

6520E Liugong 6520E Specifications & Technical Data (2016—2026)
Visit Liugong live at
.jpg){kind=logo}
Technical specs - 6520E Liugong
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 11 t
- Transport length
- 4.8 m
- Transport width
- 2.31 m
- Transport height
- 3.27 m
- max. total weight
- 20 t
- Travel speed
- 16 km/h
- Roller width
- 2.25 m
- Wheels
- 4/4
- Turning radius outside
- 8 m
- Model series
- Pneumatic Tire
- Engine manuf.
- Cummins
- Engine type
- QSB4.5-C130
- Engine power
- 88 kW
- Displacement
- 4.5 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 622 Nm
- No. of cylinders
- 4
- Emission level
- Tier 3/EU III
More technical details, like: drive, ballast weight, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Edging press
-
No
- Trailer coupling
-
No
Download datasheets (PDF)
Liugong 6520E FAQ
What is the weight of the Liugong 6520E rubber-wheeled roller?
What are the transport dimensions of the Liugong 6520E rubber-wheeled roller?
What is the travel speed of the Liugong 6520E rubber-wheeled roller?
What are the undercarriage specifications of the Liugong 6520E rubber-wheeled roller?
What is the outside turning radius of the Liugong 6520E rubber-wheeled roller?
What is the roller width of the Liugong 6520E rubber-wheeled roller?
How much is a Liugong 6520E Rubber-wheeled Roller (2016u20132025) worth?
