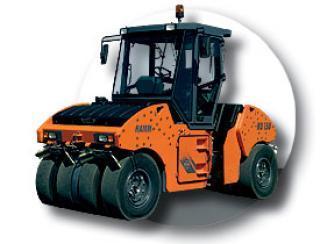

Hamm HD 150 TT Specifications & Technical Data (2004-2012)

Technical specs - HD 150 TT Hamm

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 14.3 t

Transport length: 4.55 m

Transport width: 1.81 m

Transport height: 3 m

Drive: A

max. total weight: 15.5 t

Travel speed: 13 km/h

Roller width: 1.91 m

Wheels: 4/4

Turning radius outside: 4.02 m

Model series: HD

Engine manuf.: Deutz

Engine type: BF4M2012C

Engine power: 98 kW

Revolutions at max torque: 2300 rpm

More technical details, like: ballast weight, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Infrared heater: No
Edging press: No
Trailer coupling: No

Hamm HD 150 TT FAQ

When was the Hamm HD 150 TT manufactured?

The Hamm HD 150 TT was manufactured from 2004 to 2012.

What is the weight of the Hamm HD 150 TT rubber-wheeled roller?

The Hamm HD 150 TT weighs 14.3 tons with a maximum total weight of 15.5 tons.

What are the transport dimensions of the Hamm HD 150 TT rubber-wheeled roller?

The Hamm HD 150 TT has a transport length of 4.55 meters, a transport width of 1.81 meters, and a transport height of 3 meters.

What is the travel speed of the Hamm HD 150 TT rubber-wheeled roller?

The Hamm HD 150 TT has a travel speed of 13 km/h.

What are the undercarriage specifications of the Hamm HD 150 TT rubber-wheeled roller?

The Hamm HD 150 TT features an all-wheel drive system with 4/4 wheels.

What is the outside turning radius of the Hamm HD 150 TT?

The Hamm HD 150 TT has an outside turning radius of 4.02 meters.

What is the roller width of the Hamm HD 150 TT rubber-wheeled roller?

The Hamm HD 150 TT has a roller width of 1.91 meters.

How much is a Hamm HD 150 TT Rubber-wheeled Roller (2004u20132012) worth?

The residual value of the Hamm HD 150 TT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
