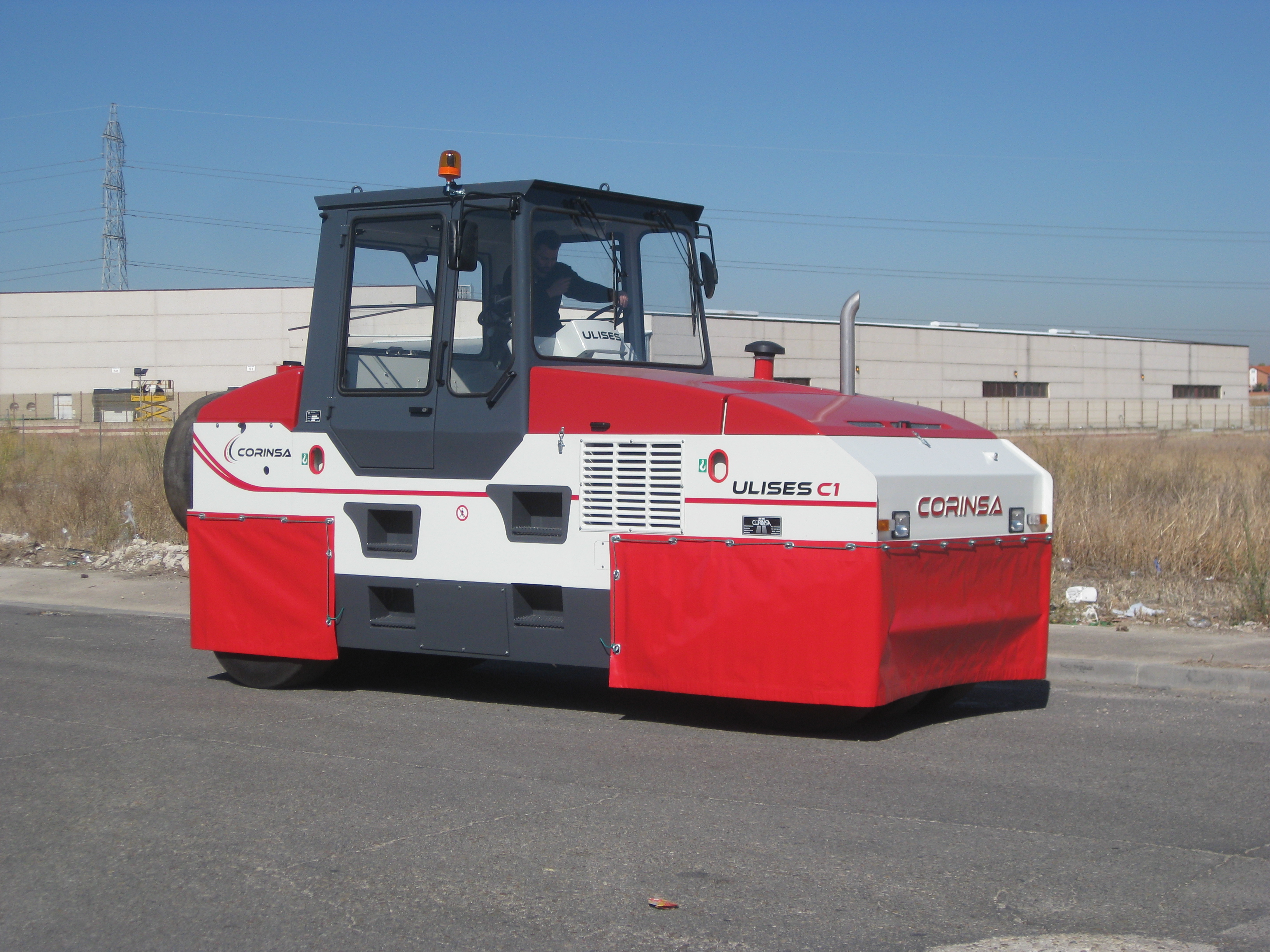

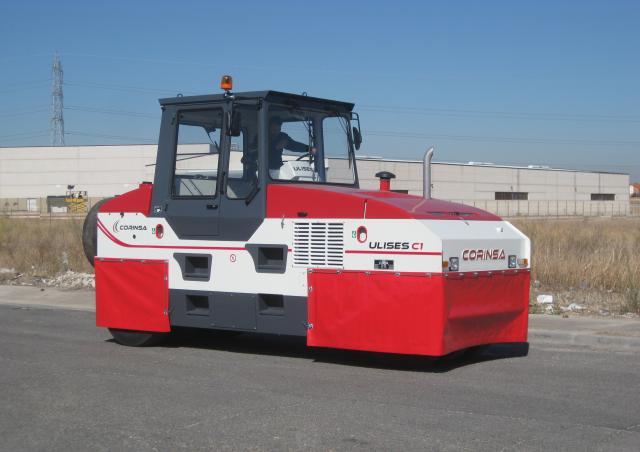

Ulises C1 Corinsa Ulises C1 Specifications & Technical Data (2014—2024)
.jpg)
Technical specs - Ulises C1 Corinsa
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 8.5 t
- Transport length
- 5.1 m
- Transport width
- 2 m
- Transport height
- 3.095 m
- Drive
- E
- max. total weight
- 8.5 t
- Travel speed
- 18 km/h
- Roller width
- 1.95 m
- Wheels
- 13/80 R20
- Model series
- Ulises
- Engine manuf.
- Deutz
- Engine type
- TCD2012 L04
- Engine power
- 103 kW
- Displacement
- 4 l
- Revolutions at max torque
- 2400 rpm
- No. of cylinders
- 4
- Emission level
- III A/Tier 3
More technical details, like: ballast weight, turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Edging press
-
Yes
- Trailer coupling
-
No
