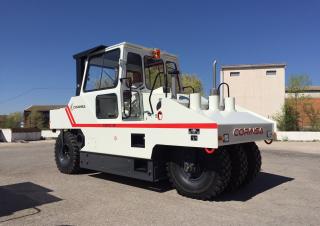

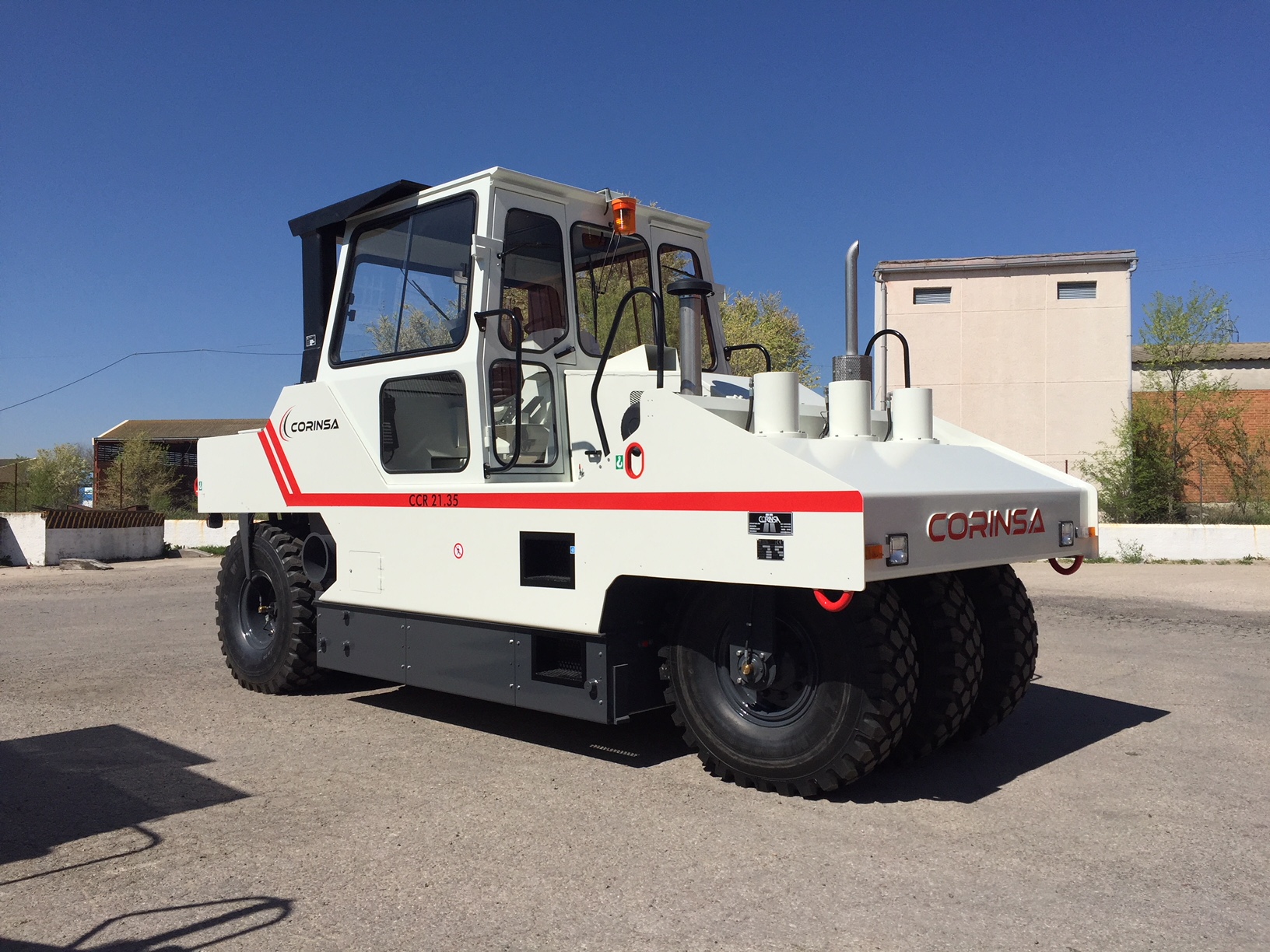

Corinsa CCR 21.35 Specifications & Technical Data (2009-2026)

Technical specs - CCR 21.35 Corinsa

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 16.29 t

Transport length: 6.271 m

Transport width: 2.5 m

Transport height: 3.491 m

Drive: E

max. total weight: 35 t

Travel speed: 24 km/h

Roller width: 2.5 m

Ballast weight: 18.7 t

Wheels: 17/80 R24

Model series: CCR

Engine manuf.: Deutz

Engine type: TCD2013 L04 2V

Engine power: 129 kW

Displacement: 4.8 l

Revolutions at max torque: 2300 rpm

No. of cylinders: 4

Emission level: III A/Tier 3

More technical details, like: turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Infrared heater: No
Edging press: Yes
Trailer coupling: No

Download datasheets (PDF)

Corinsa CCR 21.35 FAQ

When was the Corinsa CCR 21.35 manufactured?

The Corinsa CCR 21.35 was first produced in 2009.

What is the weight of the Corinsa CCR 21.35 rubber-wheeled roller?

The Corinsa CCR 21.35 weighs 16.29 tons and has a maximum total weight of 35 tons.

What are the transport dimensions of the Corinsa CCR 21.35 rubber-wheeled roller?

The Corinsa CCR 21.35 has a transport length of 6.27 meters, a transport width of 2.5 meters, and a transport height of 3.49 meters.

What is the travel speed of the Corinsa CCR 21.35 rubber-wheeled roller?

The Corinsa CCR 21.35 has a travel speed of 24 km/h.

What are the undercarriage specifications of the Corinsa CCR 21.35 rubber-wheeled roller?

The Corinsa CCR 21.35 features a simple drive system and uses 17/80 R24 wheels.

What are the roller specifications of the Corinsa CCR 21.35?

The Corinsa CCR 21.35 has a roller width of 2.5 meters and a ballast weight of 18.7 tons.

How much is a Corinsa CCR 21.35 Rubber-wheeled Roller (2009u20132025) worth?

The residual value of the Corinsa CCR 21.35 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
