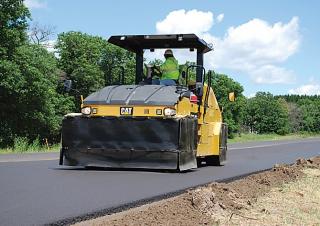

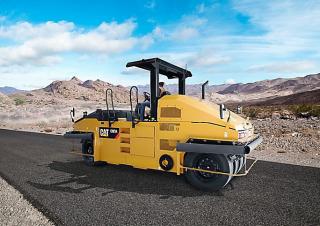

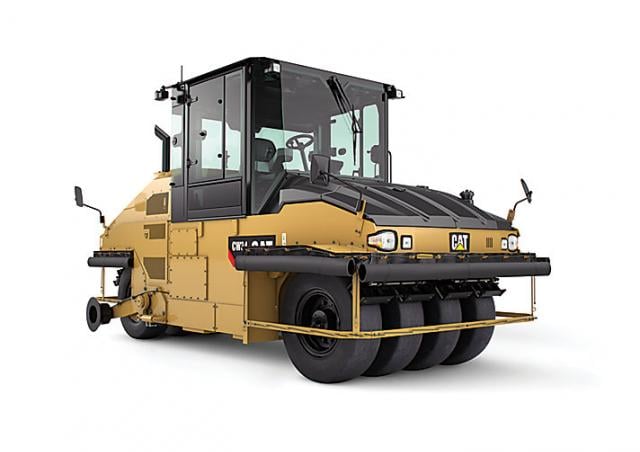

CW34 Caterpillar CW34 Specifications & Technical Data (2015—2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - CW34 Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 9 t
- Transport length
- 5.35 m
- Transport width
- 2.16 m
- Transport height
- 3 m
- Travel speed
- 19 km/h
- Roller width
- 2.09 m
- Wheels
- 9
- Turning radius outside
- 8.7 m
- Model series
- CW
- Engine manuf.
- Caterpillar
- Engine type
- C4.4 Acert
- Engine power
- 98 kW
- Displacement
- 4.4 l
- No. of cylinders
- 4
- Cylinder bore x stroke
- 105x127 mm
- Emission level
- Tier 4 f
More technical details, like: drive, max. total weight, ballast weight, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Edging press
-
No
- Trailer coupling
-
No
Download specalog and datasheets (PDF)
Caterpillar CW34 FAQ
How much does the Caterpillar CW34 weigh?
What are the transport dimensions of the Caterpillar CW34 rubber-wheeled roller?
What is the travel speed of the Caterpillar CW34 rubber-wheeled roller?
How many wheels does the undercarriage of the Caterpillar CW34 rubber-wheeled roller have?
What is the turning radius of the Caterpillar CW34 rubber-wheeled roller?
What is the roller width of the Caterpillar CW34 rubber-wheeled roller?
How much is a Caterpillar CW34 Rubber-wheeled Roller (2015u20132025) worth?
