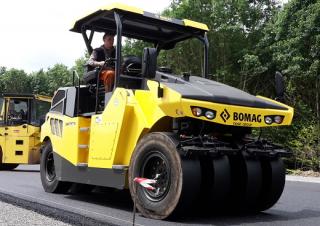

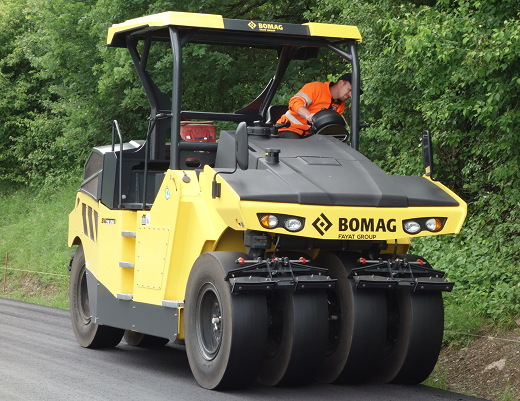

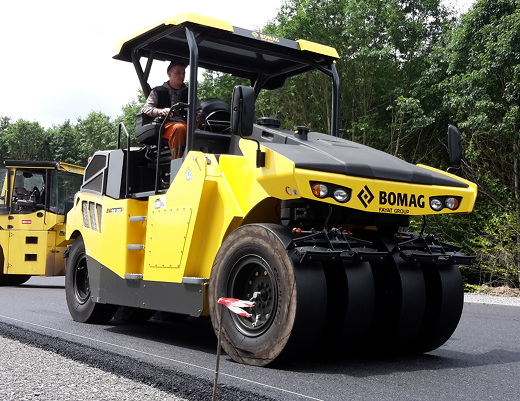

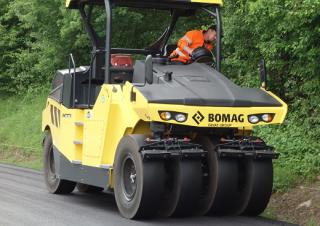

BW 28 RH Bomag BW 28 RH Specifications & Technical Data (2017—2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Bomag live at
Technical specs - BW 28 RH Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 8.6 t
- Transport length
- 4.945 m
- Transport width
- 2.07 m
- Transport height
- 2.995 m
- max. total weight
- 28 t
- Travel speed
- 20 km/h
- Roller width
- 2.04 m
- Wheels
- 8
- Turning radius outside
- 5.7 m
- Model series
- BW
- Engine manuf.
- Deutz
- Engine type
- TCD2012 L04 2V AG3
- Engine power
- 92 kW
- Displacement
- 4.038 l
- Revolutions at max torque
- 2100 rpm
More technical details, like: drive, ballast weight, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Edging press
-
No
- Trailer coupling
-
No
Download datasheets (PDF)
Bomag BW 28 RH FAQ
What is the weight of the Bomag BW 28 RH rubber-wheeled roller?
What are the transport dimensions of the Bomag BW 28 RH?
What is the travel speed of the Bomag BW 28 RH rubber-wheeled roller?
What are the undercarriage specifications of the Bomag BW 28 RH?
What is the turning radius of the Bomag BW 28 RH rubber-wheeled roller?
What is the roller width of the Bomag BW 28 RH rubber-wheeled roller?
How much is a Bomag BW 28 RH Rubber-wheeled Roller (2017u20132025) worth?
