BW 28 RH Bomag BW 28 RH Specifications & Technical Data (2017—2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Bomag live at
Technical specs - BW 28 RH Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 8.6 t
- Transport length
- 4.945 m
- Transport width
- 2.07 m
- Transport height
- 2.995 m
- max. total weight
- 28 t
- Travel speed
- 20 km/h
- Roller width
- 2.04 m
- Wheels
- 8
- Turning radius outside
- 5.7 m
- Model series
- BW
- Engine manuf.
- Deutz
- Engine type
- TCD3.6 L4
- Engine power
- 100 kW
- Displacement
- 4 l
- Revolutions at max torque
- 2000 rpm
- Emission level
- Tier 4 f
More technical details, like: drive, ballast weight, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment

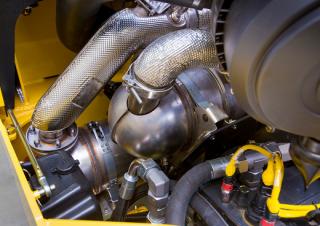

- Diesel particulate filter
-
Yes
- Infrared heater
-
No
- Edging press
-
No
- Trailer coupling
-
No
Download datasheets (PDF)
