AP 240 H-T3 Ammann AP 240 H-T3 Specifications & Technical Data (2013—2021)

Weight: 9.63t – Transport length: 5.04m – Transport width: 2.1m – Transport height: 3.085m – max. total weight: 24t – Travel speed: 19km/h

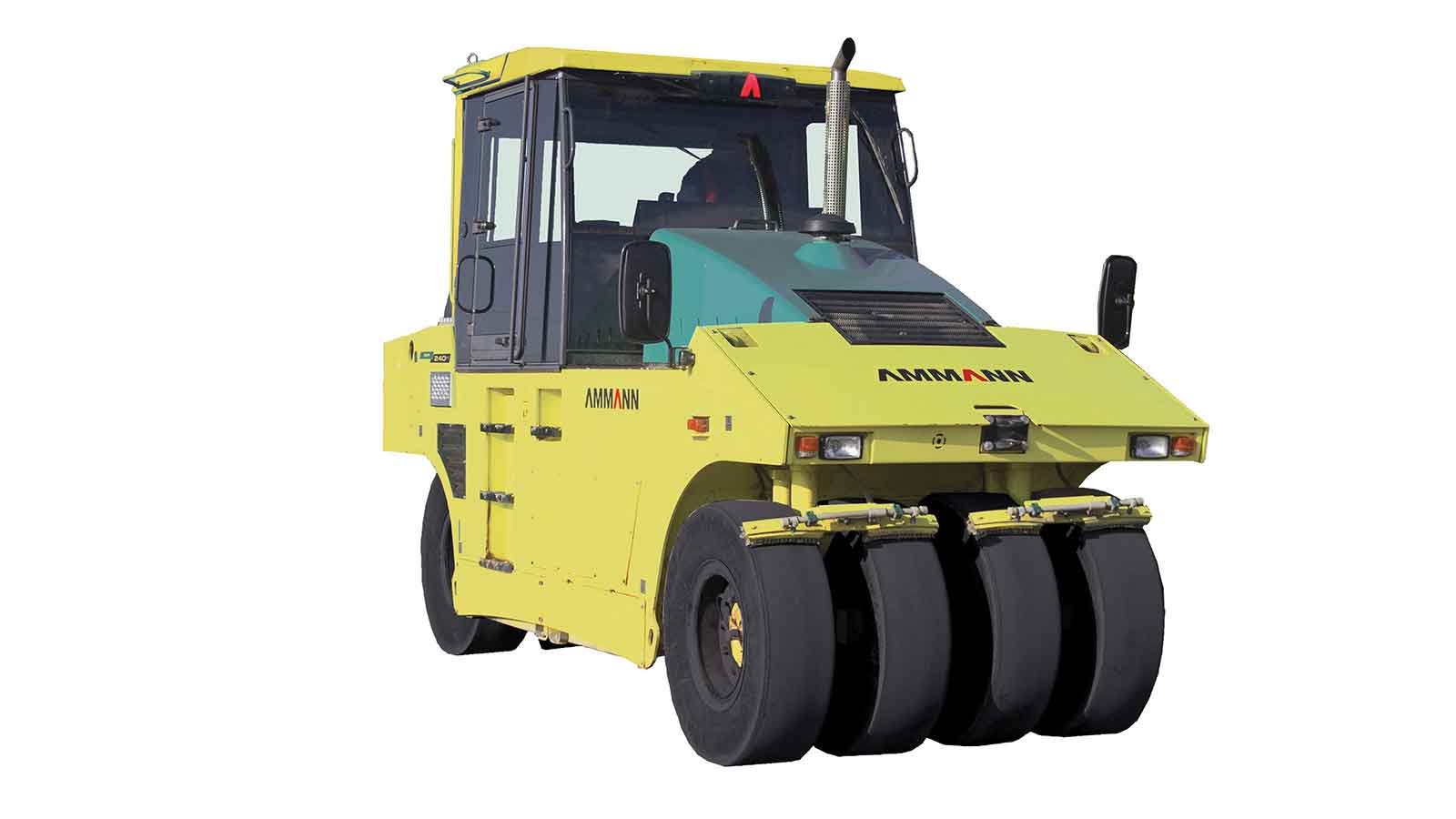

Rollers Rubber-wheeled Rollers Ammann AP 240 H-T3
Rollers Rubber-wheeled Rollers Ammann AP 240 H-T3
Rollers Rubber-wheeled Rollers Ammann AP 240 H-T3
Rollers Rubber-wheeled Rollers Ammann AP 240 H-T3

Technical specs - AP 240 H-T3 Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.63 t
Transport length
5.04 m
Transport width
2.1 m
Transport height
3.085 m
max. total weight
24 t
Travel speed
19 km/h
Roller width
2.04 m
Wheels
8
Turning radius outside
6.18 m
Model series
AP
Engine manuf.
Cummins
Engine type
QSB3.3-C99
Engine power
74 kW
Displacement
3.3 l
Revolutions at max torque
1400 rpm
No. of cylinders
4
Emission level
Tier 3

More technical details, like: drive, ballast weight, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Infrared heater
No
Edging press
No
Trailer coupling
No

Download datasheets (PDF)

Ammann AP 240 H-T3 FAQ

When was the Ammann AP 240 H-T3 manufactured?

The Ammann AP 240 H-T3 was manufactured from 2013 to 2021.

What is the weight of the Ammann AP 240 H-T3 rubber-wheeled roller?

The Ammann AP 240 H-T3 weighs 9.63 tons with a maximum total weight of 24 tons.

What are the transport dimensions of the Ammann AP 240 H-T3 rubber-wheeled roller?

The Ammann AP 240 H-T3 has a transport length of 5.04 meters, a transport width of 2.1 meters, and a transport height of 3.09 meters.

What is the travel speed of the Ammann AP 240 H-T3 rubber-wheeled roller?

The Ammann AP 240 H-T3 has a travel speed of 19 km/h.

How many wheels does the undercarriage of the Ammann AP 240 H-T3 have?

The undercarriage of the Ammann AP 240 H-T3 has 8 wheels.

What is the turning radius of the Ammann AP 240 H-T3 rubber-wheeled roller?

The Ammann AP 240 H-T3 has an outside turning radius of 6.18 meters.

What is the roller width of the Ammann AP 240 H-T3 rubber-wheeled roller?

The roller width of the Ammann AP 240 H-T3 is 2.04 meters.

How much is a Ammann AP 240 H-T3 Rubber-wheeled Roller (2013u20132021) worth?

The residual value of the Ammann AP 240 H-T3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
