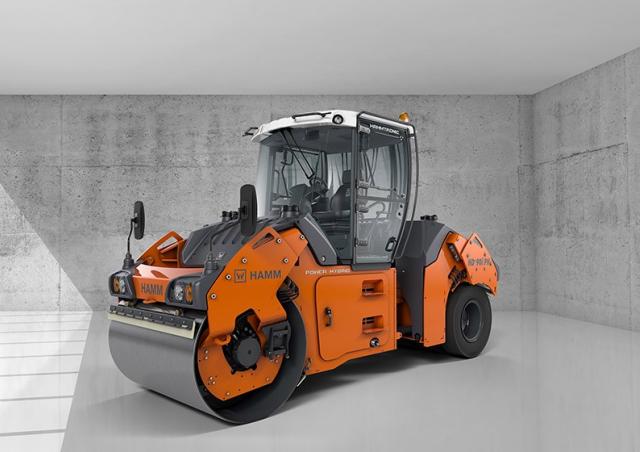

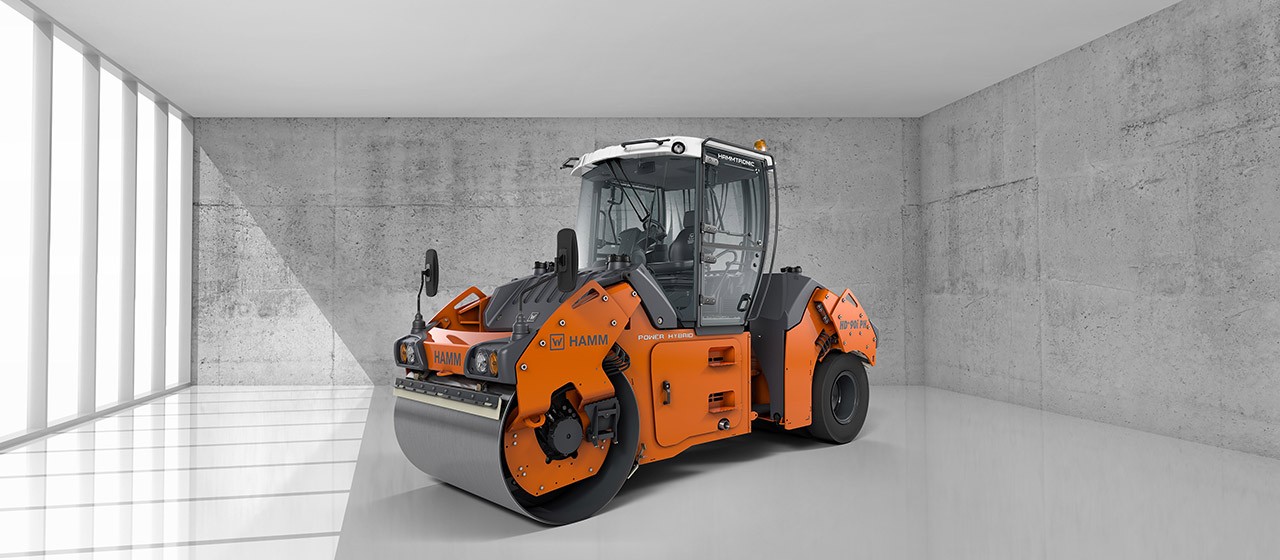

HD+ 90i PH VT-S Hamm HD+ 90i PH VT-S Specifications & Technical Data (2019—2022)
Visit Hamm live at
Technical specs - HD+ 90i PH VT-S Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 8.96 t
- Transport length
- 4.8 m
- Transport width
- 1.8 m
- Transport height
- 3.01 m
- Vibration
- e
- Drive
- A
- Steering
- KL
- Travel speed
- 12 km/h
- Frequency
- 50 Hz
- Roller width
- 1.68 m
- Rollers Ø
- 1.2 m
- Turning radius outside
- 5.9 m
- Statical line load
- 29.2 kg/cm
- Model series
- HD+
- Engine manuf.
- Deutz
- Engine type
- TD 2.9 L4
- Engine power
- 55.4 kW
- Displacement
- 2.9 l
- No. of cylinders
- 4
- Emission level
- Stage 4
More technical details, like: dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
Yes
