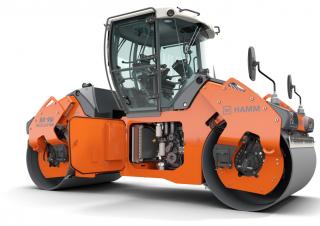

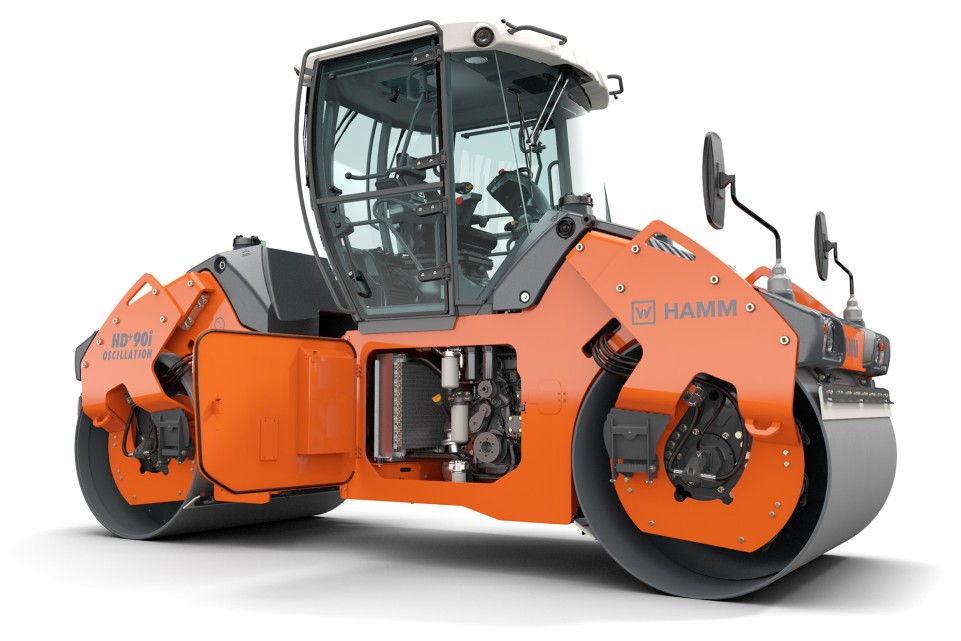

HD+ 90 VT-S Hamm HD+ 90 VT-S Specifications & Technical Data (2010—2020)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Hamm live at
Technical specs - HD+ 90 VT-S Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 9.12 t
- Transport length
- 4.6 m
- Transport width
- 1.79 m
- Transport height
- 2.05 m
- Drive
- A
- Steering
- KL
- Travel speed
- 12 km/h
- Frequency
- 55 Hz
- Roller width
- 1.82 m
- Rollers Ø
- 1.2 m
- Turning radius outside
- 5.25 m
- Statical line load
- 29.5 kg/cm
- Model series
- HD+
- Engine manuf.
- Kohler
- Engine type
- KDI2504
- Engine power
- 48 kW
- Max. torque
- 305/1500 Nm
- No. of cylinders
- 4
More technical details, like: vibration, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
