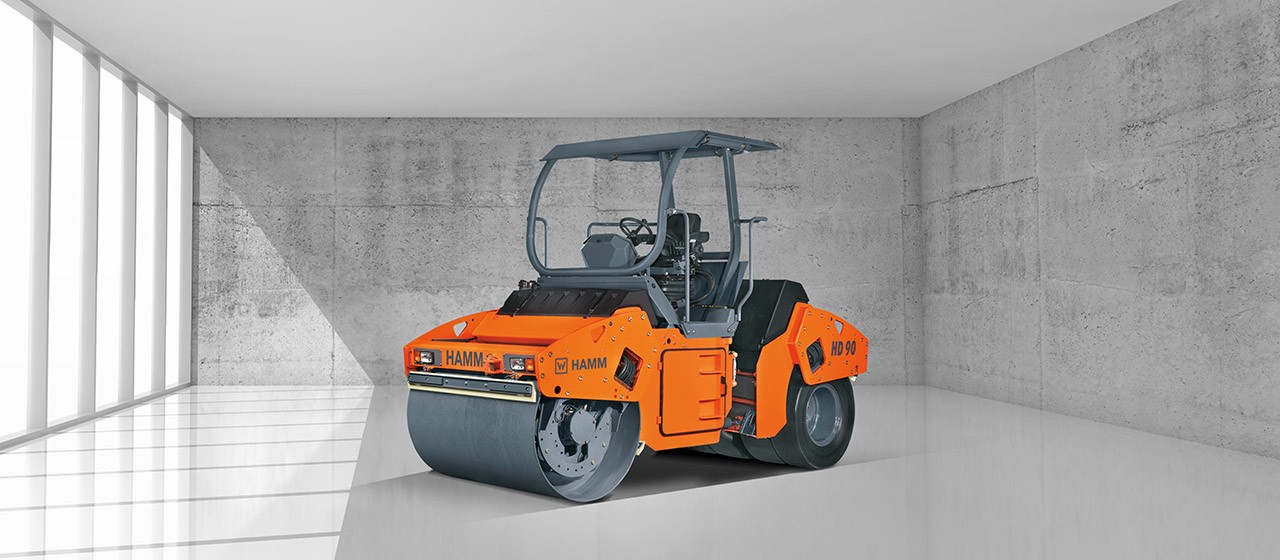

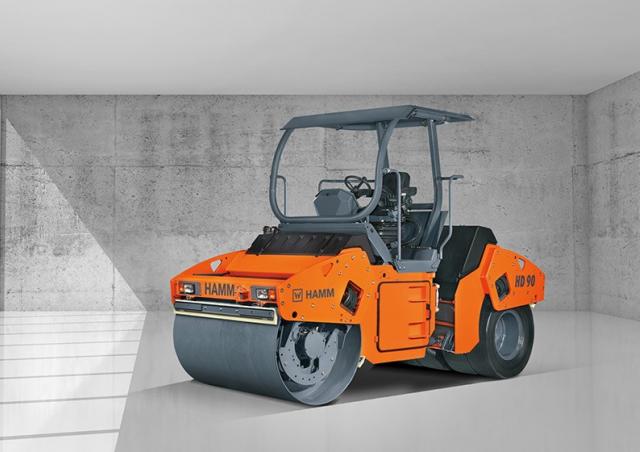

HD 90 K Hamm HD 90 K Specifications & Technical Data (2008—2010)
Visit Hamm live at
Technical specs - HD 90 K Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 8.59 t
- Transport length
- 4.6 m
- Transport width
- 1.81 m
- Transport height
- 3.04 m
- Vibration
- e
- Drive
- A
- Steering
- KL
- Travel speed
- 14.8 km/h
- Frequency
- 50 Hz
- Roller width
- 1.68 m
- Rollers Ø
- 1.2 m
- Turning radius outside
- 3.961 m
- Statical line load
- 27.5 kg/cm
- Model series
- HD
- Engine manuf.
- Deutz
- Engine type
- TCD2012 L04
- Engine power
- 100 kW
- Emission level
- III A
More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
