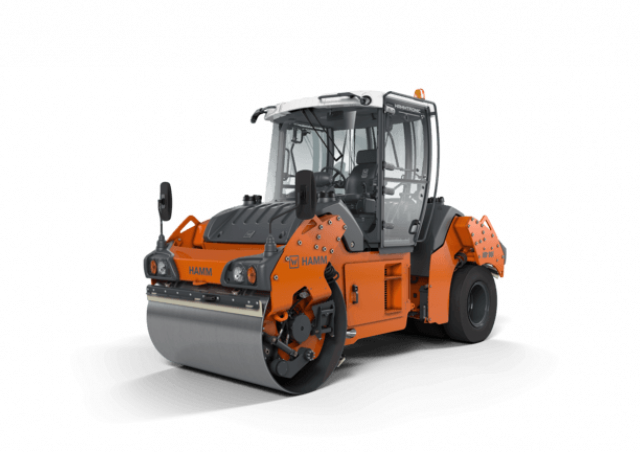

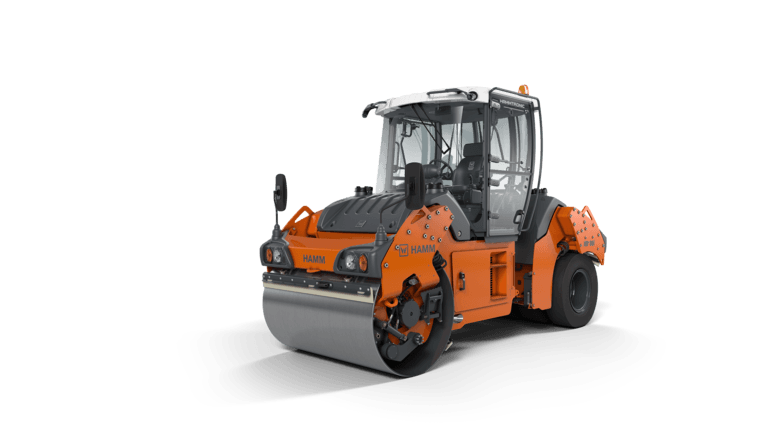

Hamm HD+ 80 VT Specifications & Technical Data (2023-2025)
Technical specs - HD+ 80 VT Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.47 t
- Transport length
- 4.48 m
- Transport width
- 1.8 m
- Transport height
- 2.89 m
- Steering
- KL
- Travel speed
- 9.75 km/h
- Frequency
- 58 Hz
- Roller width
- 1.68 m
- Rollers Ø
- 1.14 m
- Statical line load
- 23.39 kg/cm
- Model series
- HD
- Engine manuf.
- Deutz
- Engine type
- TD 2.9 L4
- Engine power
- 55.4 kW
- No. of cylinders
- 4
- Emission level
- EU Stage IIIA / EPA Tier 3
More technical details, like: vibration, drive, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
