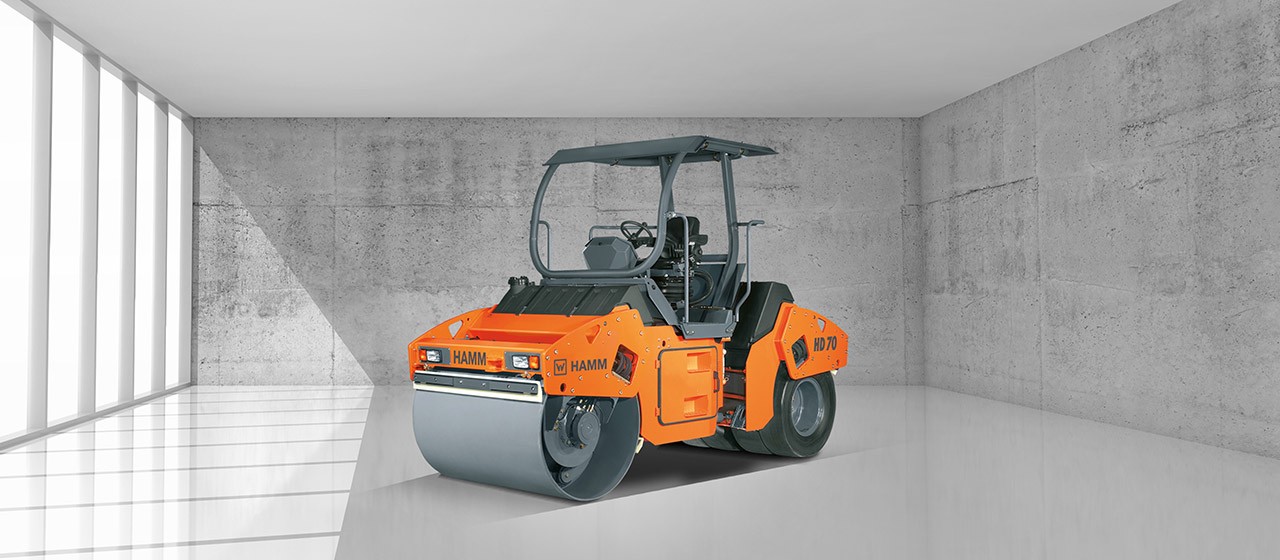

HD 70 K Hamm HD 70 K Specifications & Technical Data (2019—2026)
.jpg)
Visit Hamm live at
Technical specs - HD 70 K Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 6.97 t
- Transport length
- 4.34 m
- Transport width
- 1.79 m
- Transport height
- 2.94 m
- Vibration
- e
- Drive
- A
- Steering
- KL
- Travel speed
- 12.6 km/h
- Frequency
- 58 Hz
- Roller width
- 1.5 m
- Rollers Ø
- 1.14 m
- Turning radius outside
- 4.174 m
- Statical line load
- 24.6 kg/cm
- Model series
- HD
- Engine manuf.
- Deutz
- Engine type
- TD 2011 L04 W
- Engine power
- 55.4 kW
- Displacement
- 2.9 l
- Revolutions at max torque
- 2500 rpm
- No. of cylinders
- 4
- Emission level
- III A
More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
