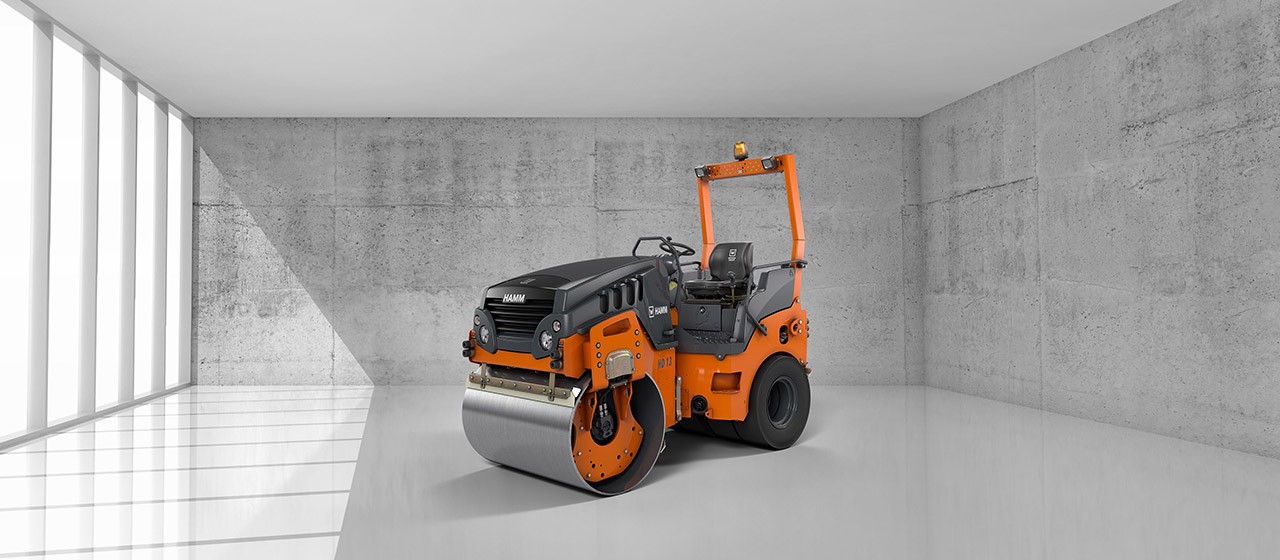

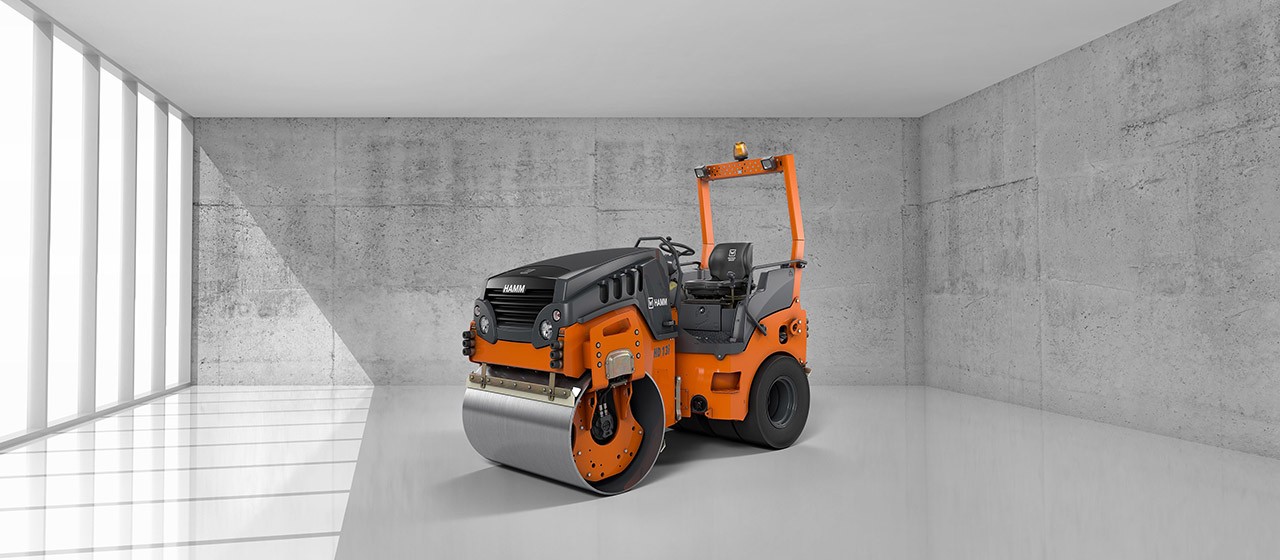

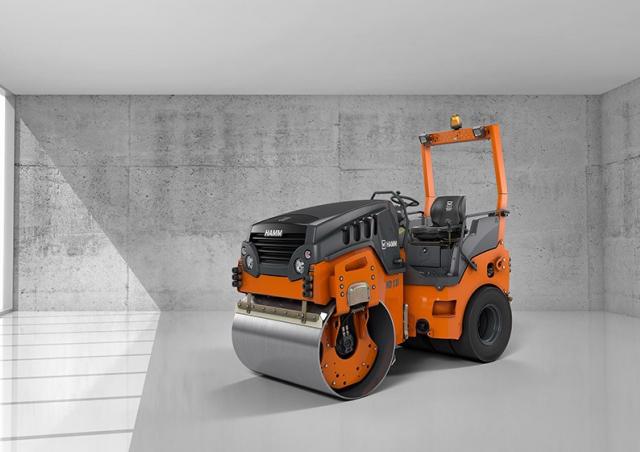

HD 13i VT Hamm HD 13i VT Specifications & Technical Data (2019—2026)
.jpg)
.jpg)
Visit Hamm live at
Technical specs - HD 13i VT Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 3.91 t
- Transport length
- 2.9 m
- Transport width
- 1.43 m
- Transport height
- 2.59 m
- Vibration
- e
- Drive
- A
- Steering
- KL
- Travel speed
- 11 km/h
- Frequency
- 60 Hz
- Roller width
- 1.3 m
- Rollers Ø
- 0.9 m
- Turning radius outside
- 2.69 m
- Statical line load
- 16.3 kg/cm
- Model series
- HD
- Engine manuf.
- Kubota
- Engine type
- V2403-CR
- Engine power
- 37.4 kW
- Revolutions at max torque
- 2700 rpm
- No. of cylinders
- 4
- Emission level
- V
More technical details, like: dimension lxwxh, displacement, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
