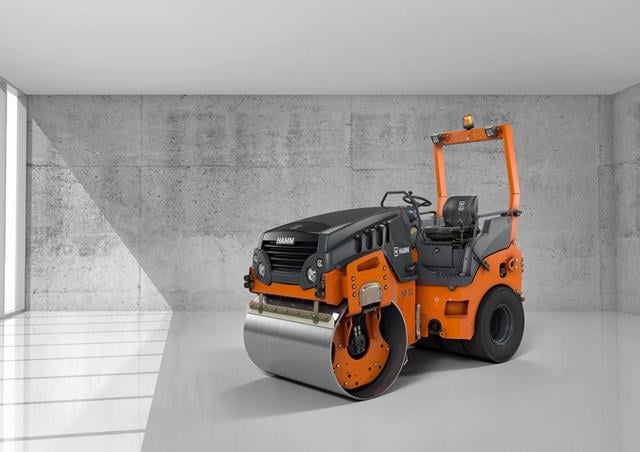

    Hamm HD 13 VT Specifications & Technical Data (2008-2010)

    1,00/10 Rate this machine now!

    Weight: 3.52t – Transport length: 2.86m – Transport width: 1.39m – Transport height: 2.59m – Vibration: e – Drive: A

    Technical specs - HD 13 VT Hamm

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Weight 3.52 t
    Transport length 2.86 m
    Transport width 1.39 m
    Transport height 2.59 m
    Vibration e
    Drive A
    Steering KL
    Travel speed 10 km/h
    Frequency 61 Hz
    Roller width 1.3 m
    Rollers Ø 0.9 m
    Turning radius outside 2.64 m
    Statical line load 14 kg/cm
    Engine manuf. Hatz
    Engine type 4 W 35 T
    Engine power 29 kW
    Revolutions at max torque 2800 rpm
    Engine power ###
    Dimension lxwxh ###
    Displacement ###
    Max. torque ###
    No. of cylinders ###
    Cylinder bore x stroke ###
    Weight ###
    Emission level ###

    Basic model with ROPS cabin

    HD 13 VT Hamm - Special equipment

    • Diesel particulate filter
    • Infrared heater
    • Oscillation
    • Compression control
    • Aircondition
