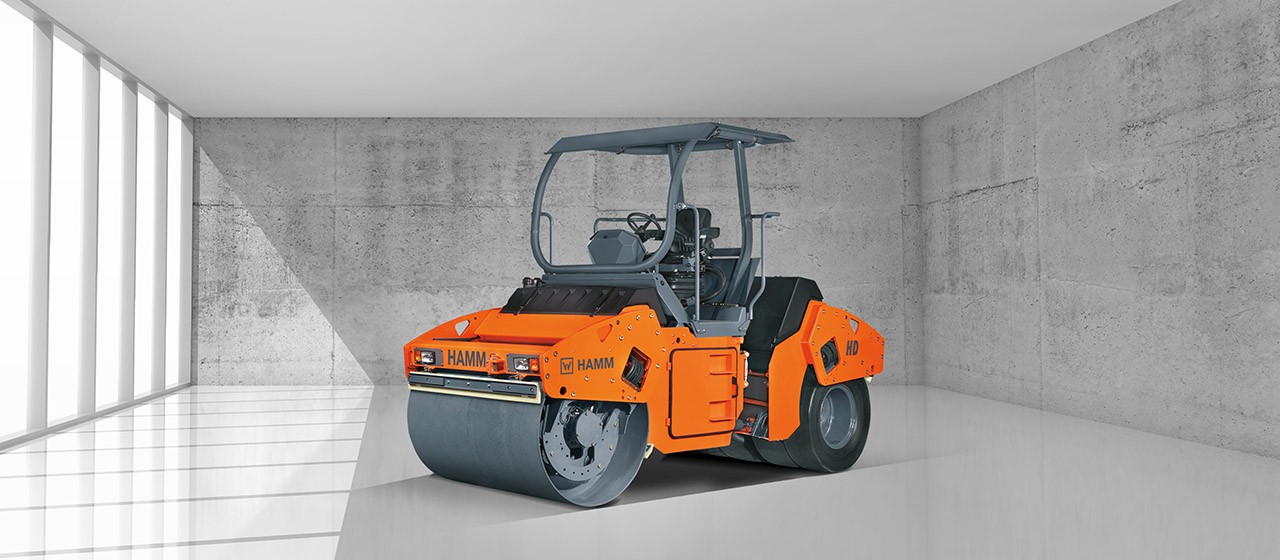

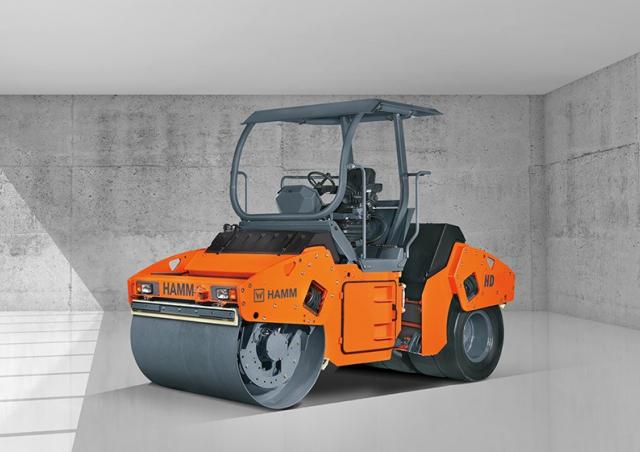

HD 110 K Hamm HD 110 K Specifications & Technical Data (2005—2010)
Visit Hamm live at
Technical specs - HD 110 K Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 9.2 t
- Transport length
- 4.6 m
- Transport width
- 1.81 m
- Transport height
- 3.04 m
- Vibration
- e
- Drive
- A
- Steering
- KL
- Travel speed
- 14.8 km/h
- Frequency
- 50 Hz
- Roller width
- 1.68 m
- Rollers Ø
- 1.2 m
- Turning radius outside
- 3.961 m
- Statical line load
- 31.5 kg/cm
- Model series
- HD
- Engine manuf.
- Deutz
- Engine type
- TCD2012 L04
- Engine power
- 100 kW
- Emission level
- III A
More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Hamm HD 110 K FAQ
How much does the Hamm HD 110 K weigh?
What are the transport dimensions of the Hamm HD 110 K?
What is the travel speed of the Hamm HD 110 K?
What type of drive does the Hamm HD 110 K have in its undercarriage?
What are the maneuverability specifications of the Hamm HD 110 K?
What are the compaction capabilities of the Hamm HD 110 K?
What are the roller specifications of the Hamm HD 110 K?
How much is a Hamm HD 110 K Combination Roller (2005u20132010) worth?
Reviews
Hamm HD 110 K user from Mozambique
It is very easy machine to use with extreme power operating power.
