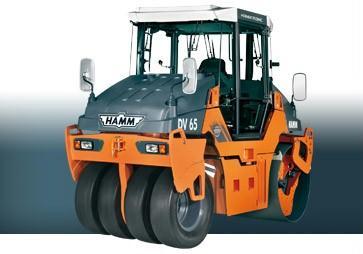

DV 65 TV Hamm DV 65 TV Specifications & Technical Data (2010—2015)
.jpg)
.jpg)
Visit Hamm live at
Technical specs - DV 65 TV Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.53 t
- Transport length
- 3.89 m
- Transport width
- 1.64 m
- Transport height
- 2.92 m
- Drive
- E
- Steering
- AL
- Travel speed
- 12 km/h
- Frequency
- 50 Hz
- Roller width
- 2.71 m
- Rollers Ø
- 1.14 m
- Turning radius outside
- 2.5 m
- Statical line load
- 26.3 kg/cm
- Model series
- DV
- Engine manuf.
- Deutz
- Engine type
- TD2012 L04 2V
- Engine power
- 64 kW
- Revolutions at max torque
- 2300 rpm
More technical details, like: vibration, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Hamm DV 65 TV FAQ
How much does the Hamm DV 65 TV weigh?
What are the transport dimensions of the Hamm DV 65 TV?
What is the travel speed of the Hamm DV 65 TV?
What type of undercarriage drive does the Hamm DV 65 TV have?
What are the maneuverability specifications of the Hamm DV 65 TV?
What are the compaction capabilities of the Hamm DV 65 TV?
What are the roller specifications of the Hamm DV 65 TV?
