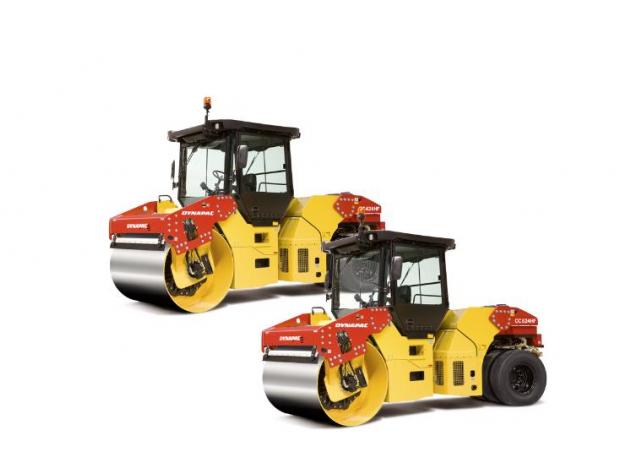

CC 524 C HF Dynapac CC 524 C HF Specifications & Technical Data (2010—2014)
Visit Dynapac live at
.jpg){kind=logo}
Technical specs - CC 524 C HF Dynapac
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 10.9 t
- Transport length
- 5.4 m
- Transport width
- 2.138 m
- Transport height
- 2.99 m
- Vibration
- d
- Steering
- KL
- Travel speed
- 12 km/h
- Frequency
- 62 Hz
- Roller width
- 1.95 m
- Rollers Ø
- 1.3 m
- Turning radius outside
- 6.07 m
- Statical line load
- 28.7 kg/cm
- Model series
- CC
- Engine manuf.
- Cummins
- Engine type
- QSB4.5
- Engine power
- 82 kW
More technical details, like: drive, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Dynapac CC 524 C HF FAQ
How much does the Dynapac CC 524 C HF weigh?
What are the transport dimensions of the Dynapac CC 524 C HF?
What is the travel speed of the Dynapac CC 524 C HF?
What are the maneuverability specifications of the Dynapac CC 524 C HF?
What are the compaction capabilities of the Dynapac CC 524 C HF?
What are the roller specifications of the Dynapac CC 524 C HF?
How much is a Dynapac CC 524 C HF Combination Roller (2010u20132014) worth?
Events
Visit Dynapac live at
.jpg){kind=logo}
Machine inspection
Ask for inspection of your Dynapac CC 524 C HF from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare Dynapac CC 524 C HF with similar Combination Rollers

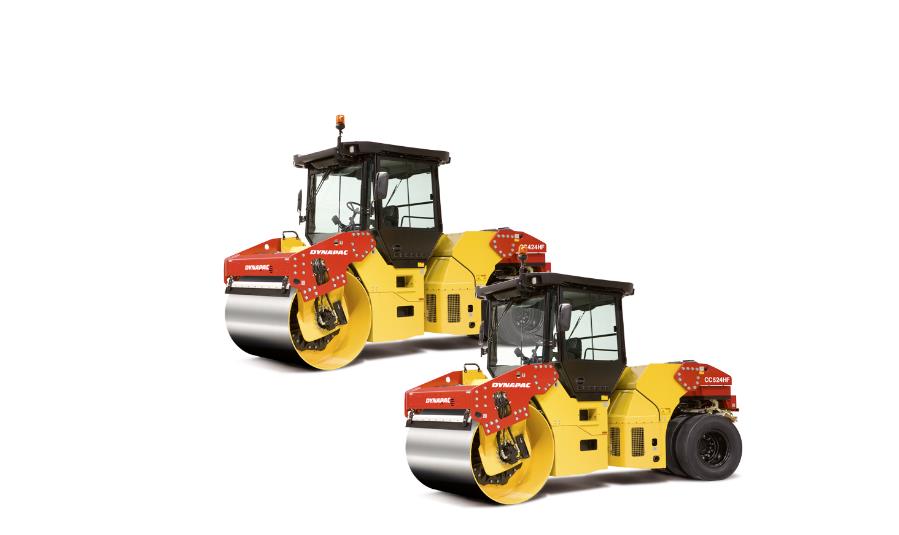

Dynapac CC 524 C HF
