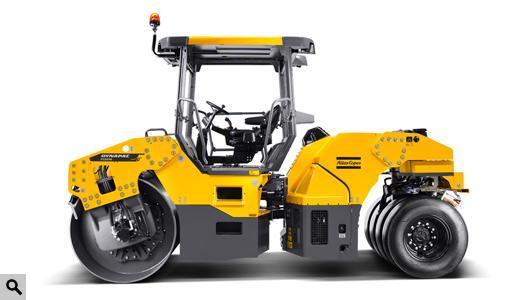

Technical specs - CC 5200 C Dynapac
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 10 t
- Transport length
- 4.99 m
- Transport width
- 2.14 m
- Transport height
- 2.99 m
- Vibration
- d
- Drive
- A
- Steering
- KL
- Travel speed
- 12 km/h
- Frequency
- 62 Hz
- Roller width
- 1.95 m
- Rollers Ø
- 1.3 m
- Turning radius outside
- 5.1 m
- Statical line load
- 28.7 kg/cm
- Model series
- CC
- Engine manuf.
- Cummins
- Engine type
- QSB4.5
- Engine power
- 93 kW
- Displacement
- 4.5 l
- Emission level
- T4i
More technical details, like: dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
