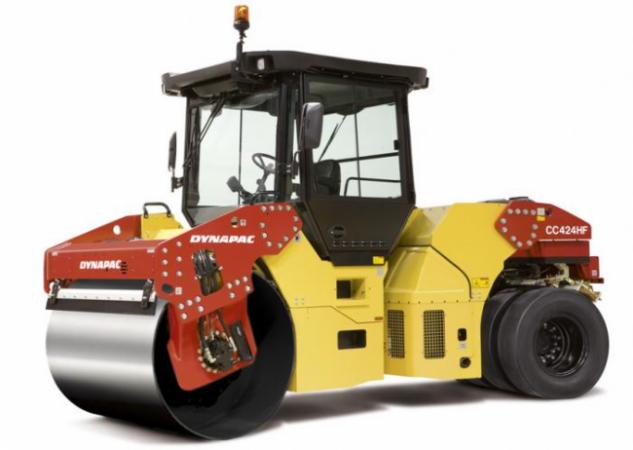

CC 424 C HF Dynapac CC 424 C HF Specifications & Technical Data (2010—2014)
Visit Dynapac live at
.jpg){kind=logo}
Technical specs - CC 424 C HF Dynapac
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 10.4 t
- Transport length
- 4.99 m
- Transport width
- 1.878 m
- Transport height
- 2.99 m
- Vibration
- d
- Steering
- KL
- Travel speed
- 12 km/h
- Frequency
- 62 Hz
- Roller width
- 1.73 m
- Rollers Ø
- 1.3 m
- Turning radius outside
- 4.955 m
- Statical line load
- 29.5 kg/cm
- Model series
- CC
- Engine manuf.
- Cummins
- Engine type
- QSB4.5
- Engine power
- 82 kW
More technical details, like: drive, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Dynapac CC 424 C HF FAQ
How much does the Dynapac CC 424 C HF weigh?
What are the transport dimensions of the Dynapac CC 424 C HF?
What is the travel speed of the Dynapac CC 424 C HF?
What are the maneuverability specifications of the Dynapac CC 424 C HF?
What are the compaction capabilities of the Dynapac CC 424 C HF?
What are the roller specifications of the Dynapac CC 424 C HF?
How much is a Dynapac CC 424 C HF Combination Roller (2010u20132014) worth?
