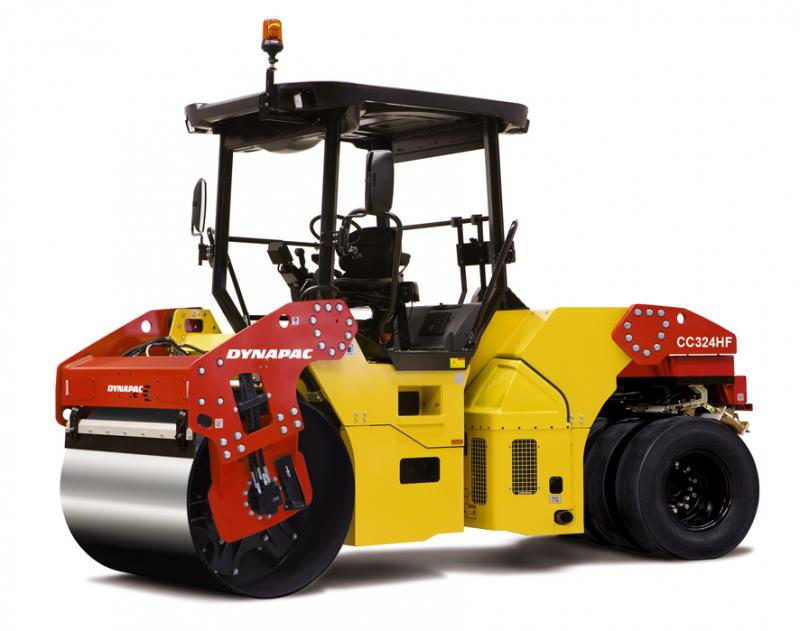

CC 324 C HF Dynapac CC 324 C HF Specifications & Technical Data (2010—2014)
Visit Dynapac live at
.jpg){kind=logo}
Technical specs - CC 324 C HF Dynapac
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 8.7 t
- Transport length
- 4.49 m
- Transport width
- 1.87 m
- Transport height
- 2.99 m
- Vibration
- d
- Steering
- KL
- Travel speed
- 11 km/h
- Frequency
- 62 Hz
- Roller width
- 1.73 m
- Rollers Ø
- 1.15 m
- Turning radius outside
- 5.266 m
- Statical line load
- 23.6 kg/cm
- Model series
- CC
- Engine manuf.
- Cummins
- Engine type
- QSB3.3
- Engine power
- 60 kW
- Displacement
- 3.3 l
- Revolutions at max torque
- 2200 rpm
- Emission level
- T3
More technical details, like: drive, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
