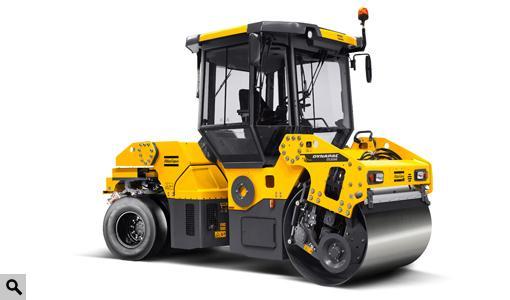

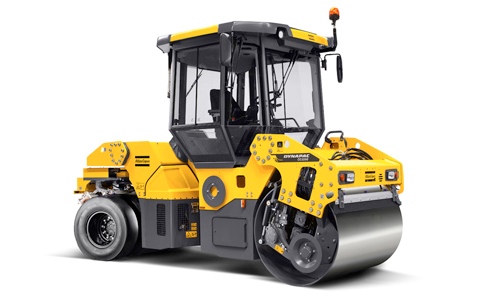

CC 2200 C Dynapac CC 2200 C Specifications & Technical Data (2014—2016)
.jpg)
.jpg)
Visit Dynapac live at
.jpg){kind=logo}
Technical specs - CC 2200 C Dynapac
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.4 t
- Transport length
- 4.49 m
- Transport width
- 1.62 m
- Transport height
- 2.99 m
- Vibration
- d
- Drive
- A
- Steering
- KL
- Travel speed
- 12 km/h
- Frequency
- 62 Hz
- Roller width
- 1.5 m
- Rollers Ø
- 1.15 m
- Turning radius outside
- 5.2 m
- Statical line load
- 25.7 kg/cm
- Model series
- CC
- Engine manuf.
- Deutz
- Engine type
- TCD3.6 L4
- Engine power
- 75 kW
- Displacement
- 3.6 l
- No. of cylinders
- 4
- Emission level
- IV Final
More technical details, like: dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
