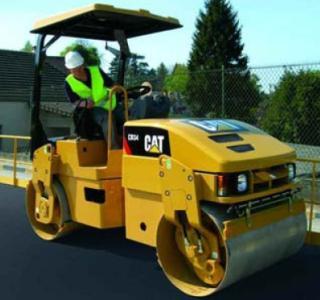

CC24 Caterpillar CC24 Specifications & Technical Data (2008—2013)

Weight: 3.23t – Transport length: 2.513m – Transport width: 1.298m – Transport height: 2.673m – Vibration: d – Drive: E

CC24

Years of manufacture: 2008—2013

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - CC24 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.23 t

Transport length: 2.513 m

Transport width: 1.298 m

Transport height: 2.673 m

Vibration: d

Drive: E

Steering: KL

Travel speed: 10 km/h

Frequency: 55 Hz

Roller width: 1.2 m

Rollers Ø: 0.7 m

Turning radius outside: 3.74 m

Statical line load: 10 kg/cm

Model series: CC

Engine manuf.: Caterpillar

Engine type: C1.5

Engine power: 23.7 kW

Displacement: 1.5 l

More technical details, like: dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Infrared heater: No
Oscillation: No
Compression control: No
Aircondition: No

Download specalog and datasheets (PDF)

Caterpillar CC24 FAQ

When was the Caterpillar CC24 manufactured?

The Caterpillar CC24 was manufactured from 2008 to 2013.

How much does the Caterpillar CC24 weigh?

The Caterpillar CC24 weighs 3.23 tons.

What are the transport dimensions of the Caterpillar CC24?

The Caterpillar CC24 has a transport length of 2.51 meters, a transport width of 1.3 meters, and a transport height of 2.67 meters.

What is the travel speed of the Caterpillar CC24?

The Caterpillar CC24 has a travel speed of 10 km/h.

What type of drive does the undercarriage of the Caterpillar CC24 have?

The undercarriage of the Caterpillar CC24 has a simple drive system.

What are the maneuverability specifications of the Caterpillar CC24?

The Caterpillar CC24 has an outside turning radius of 3.74 meters and uses articulated-frame steering.

What are the compaction capabilities of the Caterpillar CC24 combination roller?

The Caterpillar CC24 features a double vibration system, operates at a frequency of 55 Hz, and has a statical line load of 10 kg/cm.

What are the roller specifications of the Caterpillar CC24?

The Caterpillar CC24 has rollers that are 1.2 meters wide with a diameter of 0.7 meters.
