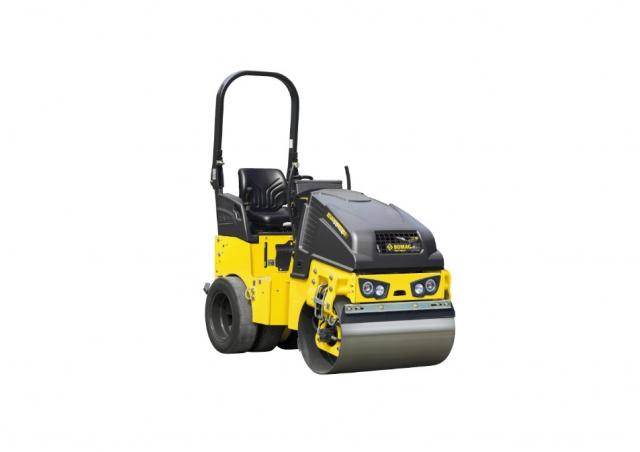

BW 90 AC-5 Bomag BW 90 AC-5 Specifications & Technical Data (2022—2026)
Visit Bomag live at
Technical specs - BW 90 AC-5 Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 1.6 t
- Transport length
- 2.194 m
- Transport width
- 0.956 m
- Transport height
- 1.627 m
- Vibration
- d
- Drive
- A
- Steering
- KL
- Travel speed
- 10 km/h
- Frequency
- 63 Hz
- Roller width
- 0.9 m
- Turning radius outside
- 8.4 m
- Statical line load
- 17 kg/cm
- Model series
- BW
- Engine manuf.
- Kubota
- Engine type
- D 902
- Engine power
- 15.1 kW
- Revolutions at max torque
- 3000 rpm
- No. of cylinders
- 3
- Emission level
- Stage V / TIER4f
More technical details, like: rollers Ø, dimension lxwxh, displacement, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
Yes
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Bomag BW 90 AC-5 FAQ
How much does the Bomag BW 90 AC-5 weigh?
What are the transport dimensions of the Bomag BW 90 AC-5?
What is the travel speed of the Bomag BW 90 AC-5?
What type of drive does the undercarriage of the Bomag BW 90 AC-5 have?
What are the maneuverability specifications of the Bomag BW 90 AC-5?
What are the compaction capabilities of the Bomag BW 90 AC-5?
What is the roller width of the Bomag BW 90 AC-5?
